Many of our lathes are in stock ready to ship. One year warranty. Spare
parts are quickly available from our warehouses. American Machine Tools
Company sells to the USA, Canada, and Latin America.
A metalworking
lathe machine is used for shaping metal (or other materials) round by
holding and rotating the workpiece while a carbide tool bit is pushed
into the outside or inside of the workpiece - causing a chip removing
cutting action. Holding the part is normally done with a chuck that has
jaws to grip the part at one end and a pointed center or steady rest to
support the center of the part at the other end. Lathes may also be able
to produce screw threads, tapered work, drilled holes, knurled surfaces,
and crankshafts depending which tooling is used and options are chosen.
Engine lathes can be grouped into four categories: lightweight bench type,
precision tool room type, gap type and big bore. Precision tool room lathes
are used for all operations, such as turning, boring, drilling, reaming,
producing screw threads, taper turning, knurling, and radius forming where
higher tolerances are required. Gap lathes have a removeable gap section
that comes out of the bed allowing them to fit larger diameter but short

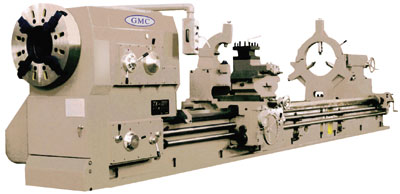

workpieces with the machining work to be done on the face. Big Bore means
the machine is large and has an extra large diameter spindle bore through
the head stock to allow working on shafts and other parts that are longer
than the distance between centers, such as an oil drilling shaft.
Before choosing a lathe, consider the diameter of the work that will rotate
(swing) over the bed, the diameter of the work that will swing by the
cutting tool carriage/cross slide, and the length to be held between centers.
Affordable Chinese made lathes have become popular now that their quality
is improving. But before using one for the first time please thoroughly
flush the gearbox oil to get any chips and manufacturing grit out. Also
check to make sure all the bolts are still tight after shipping. If you
need to minimize runout or use the machine for many hours per day, please
choose one of our better lathe machines made in Canada or Taiwan. Please
call us for advice. Our salesman has 25 years experience using a lathe
machine himself.
Click to see an educational diagram of
an engine lathe
Click for instructions to learn how to use a lathe
(warning: long webpage takes a while to download)
Click to see our large selection of JET
Lathes
Click
to see our American
Turnmaster Lathes
|
Options:
Phase Converter
Micro Carriage Stop
Live Center
Digital Readouts
Taper Turning
5-C Collet Closer
Tool Post Grinder
|
2 axis Digital
Readouts
|
Taper Turning
Attachment
|
5C Collet Closer
|
Birmingham YCL-1236 Lathe machine
Made in China.
Floor stand included • Geared Head
12" diameter x 36" center distance
7" diameter max swing over carriage
2 HP, 220 volt, 1 phase main motor
9 speeds from 70 - 1400 RPM
Standard Equipment: 6" 3-jaw chuck 8" 4-jaw chuck 10" face
plate 1-1/2" spindle bore 3 3/4" steady rest follow rest
Gap 4-way tool post thread chasing dial 2 dead centers reducing
sleave full splash guard chip tray
Automatic longitudinal and cross feeding
Hardened and ground Spindle and Bedways
12" swing x 36" center distance Precision Geared Head Gap Bench
type including Floor stand: $2995.
In stock.
Call 773-334-5000 to order this machine
Click
to request a formal quote YCL-12x36
|
Birmingham
YCL-1236
Options can be installed in USA:
Taper Turning attachment
Micro Carriage Stop
5-C Lever Collet Closer
2 axis Digital Readout |
Birmingham YCL-1340 Lathe Machine
SAME AS ABOVE
EXCEPT:
13" swing x 40" center distance
8" diameter max swing over carriage
Equipment is same as above. Manufactured in China.
Precision Geared Head Gap Bench type including Floor stand: $3395.
In stock.
Call
773-334-5000 to order this machine
Click
to request a formal quote YCL-13x40
|
Birmingham
YCL-1340 |
YCL-1440 Gap Bed Tool Room Lathe Machine
14" swing
x 40" center distance with floor stand
16 speed, 1.5" spindle bore, 3 HP, 220 volts, 3 phase.
8.62" diameter max swing over carriage
Standard Equipment:
6" 3-jaw chuck 8" 4-jaw chuck
12" face plate 3 3/4" steady rest
follow rest Gap 4-way tool post
thread chasing dial 2 dead centers
reducing sleave full splash guard chip tray
foot brake worklight coolant system
No manually changing gears required for most threading
$4895. In
stock. Manufactured in China.
Call 773-334-5000
to order this machine
Click
to request a formal quote YCL-14x40
|
Birmingham
YCL-1440
Options can be installed in USA:
Taper Turning attachment
Micro Carriage Stop
5-C Lever Collet Closer
2 axis Digital Readout
Rotary or Digital Phase Converter
Optional 1 phase
electrics available |
YCL-1640-60
Lathe Machines
Cast iron base.
16" swing x 40" or 60" center distance.
8.81" dia swing over carriage.
12 speed, 2 9/32" spindle bore, 7.5 HP, 220 volts, 3 phase.
Standard Equipment:
10" 3-jaw chuck 12" 4-jaw chuck 14" face plate 7 1/2" steady
rest follow rest Gap 4-way tool post thread chasing dial
2 dead centers reducing sleave full splash guard chip tray
foot brake worklight coolant system
No manually changing gears required for threading
Normally in stock. Manufactured in China.
Click
to Request a Quote for YCL-16x40
Click
to Request a Quote for YCL-16x60
|
Birmingham
YCL-1660
Click
to see a VIDEO of the YCL-1660
Options can be installed in USA:
Taper Turning attachment
Micro Carriage Stop
5-C Lever Collet Closer
2 axis Digital Readout
Rotary or Digital Phase Converter |
High Speed
Precision Gap Bed Lathe Machines
Choose from
20", 22" or 26" swing diameters
Choose from 60", 80" or 120" center distance.
12 speeds, 3-1/8" spindle bore, 10 HP, 220 volts, 3 phase.
20" model has 11.87" diameter swing over cross slide.
22" model has 13.75" diameter swing over cross slide.
26" model has 17.5" diameter swing over cross slide.
Standard Equipment:
Cast iron base 12" 3-jaw chuck 16" 4-jaw chuck 18" face
plate 10" drive plate steady rest follow rest removeable
gap 4-way tool post thread chasing dial 2 dead centers reducing
sleave full splash guard chip tray foot brake worklight
coolant system 4 position auto carriage stop
No manually changing gears required for threading
Normally in stock. Manufactured in China.
Click
to Request a Quote for YCL-20x60
Click
to Request a Quote for YCL-20x80
Click
to Request a Quote for YCL-22x60
Click
to Request a Quote for YCL-22x80
Click
to Request a Quote for YCL-22x120
Click
to Request a Quote for YCL-26x80
Click
to Request a Quote for YCL-26x120
|
YCL-2060,
2080, 2280, 22120, 26120
Click
to see video of Birmingham YCL-2060
Click
to see video of Birmingham YCL-26120
Options can
be installed in USA:
2 axis Digital Readout
Taper Turning attachment
Micro Carriage Stop
5-C Lever Collet Closer
Rotary or Digital Phase Converter
|
GMC model GML-1440BGF Geared Head Bench Lathe
Low cost lathe
with many features
220 Volts, 1 phase Electrics
14" swing diameter x 40" center distance
Foot Brake
Coolant System
Work Light
ISO 9001 certified factory
Fully enclosed precision gearbox
Spindle bore 1-1/2"
Heavy duty spindle D1-4
Rigid guideway width 7-1/2"
Heavy duty main motor 3 HP, 220 volts, 1 phase
9 spindle speeds from 65 to 2000 rpm,
speeds: 65/120/190/300/480/750/1250/2000 rpm
38 kinds of inch threads, and 28 metric threads
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-points by precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year warranty on all parts
Specifications:
Maximum swing over cross slide: 8-1/8" diameter
36 kinds of Longitudinal feeds; 0.002 - 0.03 I.P.R.
36 kinds of cross feeds; 0.0008 - 0.010 I.P.R.
Inch threads: 8 to 112 T.P.I., 38 kinds
Metric threads: 0.45-7.2mm I.P.R., 28 kinds
Spindle Taper: MT5
Tailstock Taper: MT3
Max swing in gap: 19-1/4" diameter
Max travel of top slide: 4-1/4"
Max travel of cross slide: 7-1/4"
Weight: 1700 Lbs.
Size: 70" x 35" x 59"
Click
to Request this quote and info packet
|
Standard Equipment:
Foot Brake
Coolant System
Work Light
Support Base
6" 3- jaw chuck with reversible jaws
8" 4-jaw chuck with reversible jaws
10" Face plate
3-3/4" steady rest
2" follow rest
Removable gap
4-way tool post
Full length splash guard
(2) dead centers
Reducing sleeve
Thread chasing dial
Tool box and users manual
Optional Equipment:
Digital Readout
Taper Turning Attachment
Micro-Carriage Stop
Quick Change Tool Post
5-C Collet Closer
Live Center, Drill Chuck, Carbide Turning Tools, etc
|
GML-1440
High Precision Lathe Machine
Made in Taiwan
- not China
Swing over Bed: 14" [355mm]
Between Centers: 40" [1016mm]
D1-4 Camlock with 1-1/2" Spindle Bore. [40mm]
Max swing over cross slide: 8-1/2" [216mm]
Swing in Gap: 20-3/4" [527mm]
Foot brake.
Choose from Variable Speed or 9 Speeds, 82 - 2000 RPM
Longitudinal Feeds: .0016 - .03 IPR
No change gear for threading and feed rate changes.
32 kinds of inch threads, 30 kinds of metric threads.
Automatic headstock lubrication
3 HP main motor, 220 volts, 3 phase
Includes 6" 3-jaw chuck, 8" 4-jaw chuck, 12" face plate, steady
rest, follow rest, 4-way tool post, work light, coolant system and
splash guard.
|
Click
to Request this Quote
Options:
variable speed, taper attachment, 5C collet closer, digital readout,
phase converter. |
|
GMC High
Precision Lathes made in Taiwan
Swing over
bed: 17" diameter
Center distances 43" or 67" or 80"
Swing over cross slide: 10.75" diameter
Swing in gap: 24" diameter
------------------------------------------------------------------------------------
Swing over bed: 22" diameter
Center distances 80 or 100 or 120"
Swing over cross slide: 13" diameter
Swing in gap: 30-7/8" diameter
------------------------------------------------------------------------------------
ISO 9001 certified factory in Taiwan for better quality
Spindle: D1-6, Bore: 2-1/4 diameter
Heavy duty main motor 7-1/2 HP
12 spindle speeds from 35 to 2000 rpm
44 kinds of inch threads, and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-points by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
Hand oil pump on apron for guide ways lubrication
One-piece cast iron base
Power: 220 / 208 Volts, 3 phase ( 440/460Volts optional )
|
Standard Equipment:
9 3-jaw chuck 12 4-jaw chuck 14 Face plate 1 - 6 steady
rest Follow rest Removable gap 4-way tool post Foot brake
Halogen light Full coolant system Thread chasing dial Carriage
stop system Tool box with tools Owners manual
Options: Digital Readout Taper Collet Closer
Click
to Request Quote: 17 x 43 Lathe
Click
to Request Quote: 17 x 67
Click
to Request Quote: 17 x 80
Click
to Request Quote: 22 x 80
Click
to Request Quote: 22 x 100
Click
to Request Quote: 22 x 120 |
|
Super High
Precision Toolroom Lathe Machine
Made in Taiwan to very tight tolerances.
Click
to Request Quote for this machine
Spindle run-out within 0.0001
Designed like a Hardingeฎ.
Turcite-B coating on guideways.
3HP Yaskawa variable speed inverter drive spindle motor, 0-4000
rpm
Digital readout on actual spindle rpm speeds.
Electric variable automatic feeding control on carriage and cross
slide.
Quick change tool post slide for threading.
Automatic thread length control w/ fine adjustable stops for accurate
threading
36 kinds of inch threads, 36 kinds of metric threads
Spindle is balanced, hardened and precision ground
High precision pre-loaded angular contact bearings for spindle
Lubrication system for headstock, feed box, ways and leadscrews
Electric Power 220V, 3 phase.
|
Dual
range inch/metric quick change gear box for model #TL-618EVS
Digital control & inverter drive gearbox (no change gears) for #TL-618E,
easy cutting threads, variable inch / metric threads range |
Standard-Modern
1340 Lathe Machine
Quality made in Ontario, Canada
Click
to Request a Quote for this lathe
• Controls are Inch & Metric
• Spindle held by 3 bearings
• D1-4" camlock
• Spindle taper MT#5 / Spindle center MT#3
• Reduction sleeve #5 to #3 Morse taper
• All hardened gears - no clutches
• Ammeter
• Positive ' vee' location on bed
• 54 rates of power feed / threading leads without transposing
gears
• Separate leadscrew & feedshaft
• Leadscrew & feedshaft overload protected
• Leadscrew reversible - end for end
• Apron is double walled - fully lubricated
• Threading lever convenient to threading dial
• Double half nuts
• Threading & feed levers interlocked against simultaneous
engagement
• Anti-friction bearings on rack pinion & handwheel shafts
• Single lever operates longitudinal & cross feed
• Extended cross-slide
• Heavy duty compound
• Direct reading dials (inch/metric)
• Tailstock Graduated barrel (inch or metric)
• Fast acting lever clamp
• Non-jamb handwheel
• Tang drive
• Bed has full length double vee ways
• All ways are hardened & ground
• Heavy duty casting
• Camlock dog plate assembly
• Full length rear splash guard
• 2 year warranty on parts made by Standard Modern.
Warranties of other components are per their manufacturers.
|
1340 LATHE
SPECIFICATIONS:
Swing over Bed: 13 inches (330mm)
Swing over Cross Slide:
7.75 inches (196mm)
Distance between Centers: 40"(1000mm)
Drive Motor: 3 HP
Voltage: 220
Spindle Bore: 1.38 inches (35mm)
Spindle speeds: 12
Speed range: 40 to 2000 RPM
Cross-slide travel: 7" (177 mm)
Compound slide travel: 3-1/4" (82 mm)
Tool holder: 1/2"
Tailstock Spindle diameter: 1-9/16" (40mm)
Tailstock Spindle length: 8" (203mm)
Tailstock Spindle travel: 4" (100 mm)
Tailstock Spindle taper: MT#3
OPTIONS:
• Steady Rest: ผ" - 3" dia (6 - 76mm)
• Follow Rest: ผ" - 2 ฝ" dia (6 - 63mm)
• Coolant system
• Rear chip guard
• Digital Readout
• Inch or metric transposing gears,
4 - 64 TPI or .2 - 4mm
• Telescopic taper attachment
• 5C Collet Closer
• Electric brake
• Micrometer carriage stop
• CSA approved
Shipping Weight:
1750 lbs. (794 kg)
Shipping Crate:
34" wide x 77" long x 56" H
(.84m x 1.96m x 1.4m)
|
Standard-Modern
16 inch Lathe Machine
Quality
made in Ontario, Canada
Click
to Request a Quote for this lathe
• Quality made in Canada
• Controls are Inch & Metric
• Electric brake is self actuating
• Spindle held by 3 bearings
• D1-6" camlock
• All hardened gears - no clutches
• Hi-Lo Neutral shifter
• Direct reading speed dial
• Complete range of inch and metric threads - switchable
• Double half nuts
• "Dial in" feeds under power
• Fully enclosed gearbox
• No change gears needed
• Bi-direction auto carriage stop (feeds and threads)
• Apron has feed reverse
• Leadscrew reverse
• Extended cross-slide for tracer mount
• One shot lube to carriage and cross slide
• Nitrided screw with anti-backlash nuts
• Ball chasing stop
• Tail Stock is quick double clamping
• Hardened quill with tang drive
• Auto center eject - non locking handwheel
• Bed is made from grade 'A' meehanite casting
• Hardened ways
• Chip clean out at front & rear
• Full length rear splash guard
• 2 year warranty on parts made by Standard Modern.
Warranties of other components are per their manufacturers.
|
1600 LATHE
SPECIFICATIONS:
Swing over Bed: 16 inches (400mm)
Swing over Cross Slide: 10 inches (250mm)
Distance between Centers: choose from
40" (1000mm), 60" (1500mm), 100" (2500mm)
Drive Motor: 10 HP
Voltage: choose 208, 220, 440 or 575
Electrical Controls: 115 Volts
Spindle Bore: 2.06 inches (52mm)
Spindle speeds: 18
Speed range: 40 to 2000 RPM
Feeds & thread selections: 66
Inch feed range: .0015-.105 inch/rev.
Inch thread range: 2 to 127 T.P.I.
Metric feed range: .04 to 2.67 mm/rev.
Metric lead range: .2 to 14 mm
Handwheel - per revolution: 1 inch (25.4mm)
Half nuts: Double
High Speed threading to 800 RPM
auto carriage stop: ฑ .005 in. (ฑ.13mm)
Feed torque control: Variable
Carriage length on bed: 18.25" (465 mm)
Carriage bridge width: 8.5" (215 mm)
Cross-slide length: 20" (508 mm)
Cross-slide travel: 8.5" (215 mm)
Compound travel: 3.8" (96 mm)
Direct reading dial graduation: .001" (.02mm)
Tailstock quill diameter: 2.44 in. (62mm)
Tailstock quill travel: 5" (127 mm)
Tailstock: #4 Morse Taper with tang
Tailstock offset: ฑ .75 in. (ฑ 19mm)
Bed Width: 11 in. (280mm)
Model 16 x 60
Shipping Weight: 3050 Lbs. (1386 kg)
Shipping Crate: 36" wide x 108" long x 60" H
(.9m wide x 2.8m long x 1.5m high)
OPTIONS:
• 3 jaw chuck • 4 jaw chuck
• Turret toolpost
• Steady Rest: 6 " (150mm) dia.plain or roller
• Follow rest: 2.5" (63mm) dia.plain or roller
• Faceplate: 15" (380mm) dia.
• Coolant system
• Digital Readout
• Telescopic Taper Attachment:
ฑ 10 deg x 12" (305mm) stroke
• CSA approved
|
Standard-Modern
26 inch Lathe Machine
Quality made in Ontario, Canada
Click
to Request a Quote for this lathe
• Quality made in Canada
• Controls are Inch & Metric
• Electric brake is self actuating
• Spindle held by 3 bearings
• D1-8" camlock
• All hardened gears - no clutches
• Hi-Lo Neutral shifter
• Direct reading speed dial
• Complete range of inch and metric threads - switchable
• Double half nuts
• "Dial in" feeds under power
• Fully enclosed gearbox
• No change gears needed
• Bi-direction auto carriage stop (feeds and threads)
• Apron has feed reverse
• Leadscrew reverse
• Extended cross-slide for tracer mount
• One shot lube to carriage and cross slide
• Nitrided screw with anti-backlash nuts
• Ball chasing stop
• Tail Stock is quick double clamping
• Hardened quill with tang drive
• Auto center eject - non locking handwheel
• Bed is made from grade 'A' meehanite casting
• Hardened ways
• Chip clean out at front & rear
• Full length rear splash guard
• 2 year warranty on parts made by Standard Modern.
Warranties of other components are per their manufacturers . |
2600 LATHE
SPECIFICATIONS:
Swing over Bed: 26 inches (658mm)
Swing over Cross-Slide: 18 inches (463mm)
Distance between Centers: choose from
60"(1500mm), 80"(2000mm), 120"(3000mm)
Main Drive Motor: 10 H.P.
Voltage: choose 208, 230, 460 or 575
Electrical controls: 115 Volts
Spindle bore: 3.06"(78mm)
Speed range: 17-1000 RPM
Spindle speeds: 18
Spindle nose: D1-8" camlock
Spindle center: #5 M.T.
Feeds & threads: 66
Inch feed range: .0015-.105 inches/rev.
Inch thread range: 2 to 127 TPI
Metric feed range: .04 to 2.67 mm/rev.
Metric lead range: .2 to 14 mm
Handwheel revolution: 1.000 inch (25.4mm)
High Speed threading to 800 RPM
Repeatability of auto carriage stop: ฑ.005 inch Feed torque control:
Variable
Carriage length on bed: 21" (533 mm)
Carriage bridge width: 10" (254 mm)
Cross-slide length: 24" (610 mm)
Cross-slide travel: 12" (305 mm)
Compound travel: 5" (127 mm)
Direct reading dial graduation: .001"(.02mm)
Tailstock Quill diameter: 2.94 in. (75mm)
Tailstock Quill travel: 8" (203 mm)
Tailstock Morse taper with tang: #5 M.T.
Offset: ฑ .75 in. (ฑ 19mm)
Bed Width: 14 in. (356mm)
Weight:
26 x 60 Lathe: 5500 lbs. (2495 kg.)
26 x 80 Lathe: 7400 lbs. (3357 kg.)
26 x 100 Lathe: 7900 lbs. (3583 kg.)
Shipping Crate Size:
26 x 60 Lathe:
56"W x 126"L x 68"H ( 1.4m x 3.2m x 1.8m) 26 x 80 Lathe:
56"W x 146"L x 68"H ( 1.4m x 3.7m x 1.8m) 26 x 100 Lathe:
56" W x 186" L 68" H ( 1.4m x 4.7 m x 1.8 m)
OPTIONS:
• 3 jaw chuck • 4 jaw chuck
• Turret toolpost
• Steady Rest: 6" (150mm) dia.plain or roller
• Follow rest: 2.5" (63mm) dia..plain or roller
• Faceplate: 15" (380mm) dia.
• Coolant system
• Digital Readout
• Telescopic Taper Attachment:
ฑ 10 deg x 12" (305mm) stroke
• CSA approved
|
GMC Large Gear Head Lathe Machine
Larger Spindle bore: 4-1/8"
Taper Turning Attachment
Heavy Cast Iron Base
Coolant System
Foot Brake
Work Light
Rapid Traverse
Larger Motor: 15 HP, 220V or 440Volts, 3 phase
Ajustable Spindle Clutch: Forward, Reverse, Stop
ISO 9002 certified factory
Fully enclosed precision gearbox
Heavy duty spindle D1-8
Heavy duty guideway width 15-1/2"
12 speeds: 36 - 1600 rpm
27 kinds of inch threads, and 22 metric threads
Threading and feed rate change without changing gears out
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-points by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system, headstock and feed box
Manufactured in China - One year warranty on all parts
Specifications:
Maximum swing over cross slide: 16-1/2"
Max swing in gap: 34-1/4"
65 kinds of Longitudinal feeds; 0.0023 - 0.093 I.P.R.
65 kinds of cross feeds; 0.0011 - 0.04 I.P.R.
Inch threads: 2 to 28 T.P.I., 27 kinds
Metric threads: 1 - 14mm I.P.R., 22 kinds
Module threads: 0.5 - 7mm, 18 kinds
Diametral pitch threads: 4 - 56 DP, 24 kinds
Spindle taper: MT6, Tailstock taper: MT5
Toolpost size: 1" square
Max travel of top slide: 5-3/4"
Max travel of cross slide: 14"
Max weight of workpiece: 2000 Lbs
Machine Weight: GT2680: 8700 Lbs / GT26120: 9500 Lbs
|
GT-2680:
26" swing diameter x 80" center distance
Click
to Request the GT-2680 Quote
GT-26120:
26" swing diameter x 120" center distance
Click
to Request the GT-26120 Quote
GT-3280:
32" swing diameter x 80" center distance
Click
to Request the GT-3280 Quote
GT-32120:
32" swing diameter x 120" center distance
Click
to Request the GT-32120 Quote
Standard Equipment:
Foot Brake
Coolant System
Work Light
Cast Iron Base
Taper turning attachment
Rapid traverse
Auto carriage stop
Oil pump on apron
Adjustable spindle clutch
Inch/metric dials
12" 3-jaw chuck with reversible jaws
20" 4-jaw chuck with reversible jaws
25" face plate
10" drive plate
10-1/4" steady rest
3" follow rest
Removable gap
4-way tool post
Full length splash guard
(2) dead centers
Reducing sleeve
Thread chasing dial
Tool box
Optional Equipment:
Digital Readout
Micro-Carriage Stop
Quick Change Tool Post
5-C Collet Closer
Live Center
Drill Chuck
Carbide Turning Tools, etc
|
GMC large 40 inch diameter capacity Lathe Machine
Manufactured in Taiwan - not China
Swing diameter over bed - 40"
Choose from Center Distances: 80" / 120" / 160"
• Spindle motor: 20HP , 220V or 440 Volts, inverter drive
• Carriage Rapid traverse motor: 1/4HP, 220V or 440 Volts
• Swing over cross slide: 20-1/4"
• Spindle bore: 4-1/8" diameter
• Spindle speeds 20-1200RPM / 12steps
• Width of bed: 17-3/4"
• Inch threads: 2-28 TPI, 36 kinds
• Metric threads: 0.8-14 mm , 65 kinds
• Diametrical threads: 4-56 DP, 36 kinds
• Longitudinal auto feeds: 0.004"-0.5512"/rev
• Cross auto feeds: 0.002"-0.0276"/ rev
• Gap width: 350mm
• Two leads crews 1-3/4", 2TPI
• Cross slide travel 21"
• Compound slide travel 9-1/2"
• Tailstock travel: 8"
• Tailstock quill diameter: 3-1/2" • Tailstock quill taper:
MT # 5
|
Click a
swing diameter x center distance to request a quote.
Prices start at over $55,000.
Click
to Request this Quote:
40" swing x 80" centers
Click
to Request this Quote:
40" swing x 120" centers
Click
to Request this Quote:
40" swing x 160" centers
Standard
Equipment:
• 12" Steady rest
• Follow rest
• Coolant device
One year warranty on all parts
Options:
• Extra large spindle bore 6-1/16"
• 16" Steady rest (ball bearing type)
• 3-jaw chuck 25"
• 4-jaw chuck
• Taper turning attachment
• Chuck guard
• Work light
• Newall Digital ReadOut
|
Extra Large Bore Oil Shaft Turning and Threading
Lathe
Prices starting from $139,000.
Quality Made in Taiwan (not China)
Excellent for use as an Oil Country type Lathe
Very Large Spindle Bore through Headstock:
12.1"
Swing diameter over bed: 43" or 47"
Choice of Distance between Centers: 120" / 160" / 200" / 240"
Maximum swing diameter over cross slide: 31" or 33.5"
Maximum weight of workpiece: 9000 Lbs.
Heavy Guideway: 22" or 27-1/4".
30 HP main motor, Choose from 220 volts or 440 volts, 3 phase.
( 1/2 HP rapid traverse, 1/8 HP coolant pump and lube pump).
16 speeds from 9 to 300 RPM or 9 to 420 RPM.
35 different inch threads (59 - 1 T.P.I.).
34 different metric threads (0.5 - 18 mm).
40 different longitudinal and cross slide autofeeds.
ISO 9001 certified factory
Rapid traverse on carriage longitudinal, cross slide and top slide
Automatic feeding on carriage longitudinal, cross slide and top
slide
solid cast iron machine base
Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
4-way tools post
Work light
Coolant system
(1) dead center for tailstock
Thread chasing dial
Tool box
One year warranty on all parts
|
Available
Equipment at extra cost:
• Optional 14.1" diameter bore
4-jaw chucks
3-jaw chuck
Steady
rest
Follow rest
Taper turning attachment
Face plate outboard
support coolant
system live center threading dial.
Click
to a Request Quote for:
OCL-43 x 120
Distance
between Centers: 120"
Maximum Cutting Length: 111"
Click
to a Request Quote for:
OCL-43 x 160
Distance
between Centers: 160"
Maximum Cutting Length: 150"
Click
to a Request Quote for:
OCL-43 x 240
Distance
between Centers: 240"
Maximum Cutting Length: 229"
Click
to a Request Quote for:
OCL-47 x 120
Distance
between Centers: 120"
Maximum Cutting Length: 111"
Click
to a Request Quote for:
OCL-47 x 160
Distance
between Centers: 160"
Maximum Cutting Length: 150"
Click
to a Request Quote for:
OCL-47 x 240
Distance
between Centers: 240"
Maximum Cutting Length: 229"
Click
to a Request Quote for:
OCL-47 x 360
Distance
between Centers: 360"
Maximum Cutting Length: 330"
|
Vertical Lathe - GMC model VL-5040-3S
|
For large
diameter work - go vertical!
Specifications:
Table Diameter : 39-1/4"
Max cutting diameter of railhead: 49-1/4"
Max cutting dia of side head: 43-1/4"
Max. height of workpiece: 39-1/4"
Max. weight of workpiece: 7,000 Lbs
Table Speeds: 16 speeds 6.3 to 200 RPM
Main Motor: 30 HP
Feed motor: 1-1/2HP/2 HP
Machine weight: 19,800 Lbs
Newly manufactured in China
Standard
Equipment:
Tool holder, Tool Shank, Conical Hole, Hex, Square and Triangle
Spanners, etc.
Optional
Equipment:
Side Head
2 axis Digital ReadOut for Side Head
2 axis Digital ReadOut for Vertical Head
Click
to a Request Quote for the new VL-5040-3S Vertical Lathe
|
|
Large Diameter Facing Lathe - GMC model FL-8727
Click
to a Request Quote for the new FL-8727 Facing Lathe
|
Specifications:
Max. swing over bed: 86-5/8"
Max. length of workpiece: 27-1/2"
Max. weight of workpiece: 11,000 Lbs.
4-jaw chuck diameter: 63"
Spindle speeds: 6 speeds 12 - 103 rpm
Max. cross slide travel: 43-5/8"
Max. travel of carriage: 17-3/4"
Main motor: 15 HP, 220/440V, 3 phase
Machine weight: 9750 Lbs.
Features:
ท Geared-head
ท 15 HP Heavy Duty main motor
ท 6 spindle speeds from 12-103 rpm
ท Spindle is balanced, hardened and precision ground
ท All gears and shafts and guideways are hardened and precision
ground
ท Automatic lubrication system in headstock and feed box
ท One year warranty on all parts
ท Newly manufactured in China
|
Click for American
Machine Tools Homepage
|
