Band
Saws
|
|||||
|
|||||
Scroll down to see our sawing machines. Our metal cutting powered band saws use a continuous band type blade. A drive wheel and an idler wheel support and drive the blade. Adjustable blade guides support the blade close to the work piece. On horizontal band saws, the blade is lowered onto the material to be cut. For vertical bandsaws, the piece is usually fed into the blade except for gravity self feeding type. When the blade breaks, it is possible to weld it back together which is also useful to cut inside contours. Cold Saws use a rotating circular blade instead of a band type blade and give a straighter more accurate cut but only small parts. We also have automatic self feeding saws for repeat cutting.
Click to read how to use an industrial band saw machine (warning: huge webpage to download)
HORIZONTAL BAND SAWS
|
Blade
Speeds
fpm |
Motor
HP |
Coolant
|
Horizontal
|
Click below to
Request a Price Quote |
DAKE-Johnson
 |
|
85
130 180 235 |
3/4
|
Yes
|
@90°:
7" Round @45°:
|
Dake
model SE712 |
|
|
98
164 246 328 |
1
|
Yes
|
@90°:
9 " Round @45°:
|
Dake
model SE912 |
|
Blade
Speeds
fpm |
Blade
Size |
Coolant
|
Metal
Cutting |
Click below to
Request a Price Quote |
|
|
50
90 160 270 |
1"
|
Yes |
@90°:
10 " Round |
Johnson
JH10 |
|
|
Heavy Duty Dake-Johnson JH10W Horizontal BandSaw |
|||||
|
Blade
Speeds
fpm |
Motor
HP |
Coolant
|
Metal
Cutting |
Click below to
Request a Price Quote |
|
|
(2)
115 & 230 |
2
|
Yes
|
@90°:
9" Round |
Baileigh
250M |
|
|
(2)
108 & 216 |
2
|
Yes
|
@90°:
10-1/4" Round |
Dake TRAD-300 |
|
Blade
Width
|
Motor
HP |
Coolant
|
Cutting |
Click below to
Request a Price Quote |
|
|
1"
|
3
|
Yes
|
@90°:
10" Round |
Dake-Johnson |
|
|
1-1/4"
|
5
|
Yes
|
@90°:
13" Round |
Dake-Johnson |
|
|
1-1/4"
|
5
|
Yes
|
@90°:
16" Round |
Dake-Johnson |
| Amada
HA250W Automatic Horizontal Band Saw Click to Request a Quote for Amada HA250W Cutting Capacity Round (dia.): 0.5" - 10" [13 - 250mm] Cut Capacity Rectangle (W x H): 12" x 10" [300 x 250mm] Work Load Capacity: 3307 lbs. [1500 kg] Cutting Control: Oil Pressure Flow Control Valve Main Split Vise and Rear Vise with hydraulic cylinders Motors: Blade 5 HP, Hyd Pump 1 HP, Fluid Pump 1/4 HP Electrics: 208/220/240 or 440/480 Volts, 3 phase, 60 Hz. Features: 9 Times Multi-Indexing up to 141" • Chip Conveyor • Diagnostic Lights • Index Floating Vise • Kerf Compensating Dial • Motion detector • Piece Counter • Pressure Flow Valve • Split Vise • Variable Blade Speed Drive • Zero Clamp Vise A less expensive semi-automatic version is also available. Options: Roller tables, vertical clamps, vise pressure control |
 |
|
Verticut Double Column Horizontal Band Saw 2 post design for straighter cuts • Linear bearings for maximum saw head stability Cutting feed rate hydraulically controlled Load sensing valve stops the feed if the blade starts to overload, such as when cutting the web of structural shapes Saw up travel can be set to minimize distance between the blade and the top of the material Saw down travel can be set to allow notching of blocks Manual saw control, saw up, saw down, saw cut Semi-automatic cut cycle Heavy duty cast iron gear box designed for band sawing machines, with precision machined worm, phosphorous bronze worm gear, taper roller bearings and oil bath lubrication All ball bearings are totally enclosed and lubricated for life Blade guides are carbide faced with rollers to remove blade twist and dampen Vibration flood coolant system to both saw guides Adjustable material stop for repetitive cutting Bimetal blade CSA approved electrics. 220 or 440 or 575 volts, 3 phase electrics.. Quality made in Canada |
Click to Request Quote 25"wide x 18"high |
|
VERTICUT
220M Mitering BandSaw
-also works vertical |
 Click to Request a Quote for 220M |
|
VERTICUT
280S (straight cut) & 280M (mitering) 280S: Mitre cuts up to 45 degrees by swiveling vise. 280M: Saw frame swings 45 degrees allowing mitre cutting without swinging the material. Saw frame cam locks with frame angle indicating scale. Hard stops at 0 and 45°. Material discharge table built in conveyor with 5 rollers for material feed. BOTH
MACHINES: scissor type saw with heavy duty all welded design
for rigidity and strength • flood coolant system with catch
area built into the base • quick adjusting material clamp
• blade guides are carbide faced with rollers to remove blade
twist and dampen vibration • flood coolant system to both
saw guides • steel wheels • heavy duty cast iron gear
box designed for band sawing machines, with precision machined
worm, phosphorous bronze worm gear, taper roller bearings and
oil bath lubrication • magnetic motor starter with automatic
shut off at the end of cut • cutting feed hydraulically regulated
with quick shut off to avoid valve adjustments • CSA approved
electrics. Quality made in Canada.
|
|
| VERTICUT
400M FEATURES: scissor type saw with heavy duty all welded design for rigidity and strength saw frame swings 45° forward, 60° to the rear allowing mitre cutting with out swinging the material, indicating scale showing cut angle, hard stops at +45°, 0° and -60° hydraulic saw head lift and full stroke material clamp large base for stability with large coolant catch area pivot uses taper roller bearings for a highly rigid machine with smooth low friction movement control station mounted on a swinging console cutting feed hydraulically regulated with feed rate scale automatic shut off at the end of cut, motor thermal overload protection power disconnect on machine powered blade brush to remove cutting chips adjustable material length stop for repetitive cutting ductile iron wheels blade guides are carbide faced with rollers to remove blade twist and dampen vibration, internal coolant channel to lubricate guides and direct coolant onto blade flood coolant system to both saw guides with adjustable flow rates Quality made in Canada. Motor: 3 HP, 220 or 440 or 575 volts, 3 phase CSA / UL approved electrical components. OPTIONS: 220V 1 Phase Power Work Light Heavy Duty 5 hp with 1 1/4 blade Conveyor Shipping Crate |
Cutting
Capacity@90°: 16" Round |
VERTICAL BANDSAWS
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Blade
Speeds
fpm |
Motor
HP |
Throat
Depth |
Max |
Table |
Max |
Click below to
Request a Price Quote |
 |
|
70
140 270 540 |
1
|
14"
|
10" |
15" |
5°
Left |

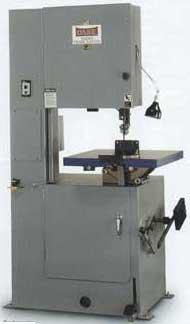

Dake model
14-10 |
|
|
Vari-
able 50 to 500 |
1.5
|
19.5"
|
12" |
24" |
10°
Left |
Dake Trademaster Adjustable
blade feed pressure. Optional 1" capacity Blade Welder |
|
|
70
140 270 540 |
1
|
9"
|
14.5"
|
29" |
none
|
Dake
Work-A-Matic SXC Automatic
gravity feed Optional Casters |
 |
|
50
- 590
|
1.5
|
16"
|
11"
|
23.5
x 23.5 |
left/right
|
Dake-Johnson
F-16 max 5/8" blade width Click to Request this Quote |
 Optional carbide blade guides, circular cutting attachment |
|
50
- 4250
|
2.2
|
23"
|
13"
|
26.4
x 26.4 |
10°/30°
|
Dake-Johnson
V-24 max 1" blade width Click to Request this Quote |
|
|
50
- 4250
|
2.2
|
23"
|
13"
|
26.4
x 26.4 |
10°/30°
|
Dake-Johnson
VH-24 max 1" blade width Click to Request this Quote |
|
|
50
- 4250
|
2.2
|
41"
|
13"
|
26.4
x 26.4 |
10°/30°
|
Dake-Johnson
V-40 max 3/4" blade width Click to Request this Quote |
|
|
50
- 4250
|
2.2
|
41"
|
13"
|
26.4
x 26.4 |
10°/30°
|
Dake-Johnson
VH-40 max 3/4" blade width Click to Request this Quote |
|

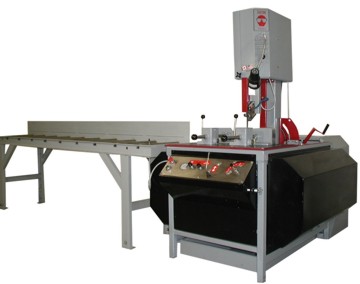

Verticut 500MV & 625MV:
|
  |
This sawing
head of this machine can tilt to miter cut up to 45° left and
45° right of center. Great for cutting large structurals, pipe
and tubing at 90° or 45°.
|
|
| VERTICUT 500MV - Cuts
up to 18" wide x 25" high stuctural beams or 18" diameter pipe. Click to Request a Quote for the 500MV Saw |
VERTICUT 625MV - Cuts
up to 24" wide x 34" high stuctural beams or 24" diameter pipe. Click to Request a Quote for the 625MV Saw |
||
DAKE circular cold saws will give you the finest, high-tolerance mill-grade quality cut of any cold saw on the market.
|
Blade
RPM |
Motor
HP |
Coolant
|
Metal Cutting Capacity |
Click below to
Request a Price Quote |
Options: Pneumatic Vise, and 78 inch Loading and Unloading Tables |
|
44
|
1.2
|
Yes
|
@90°:
1 1/4 round solid, 2 3/4 round tube,2 1/2 sq.tube 3 7/8 x 1 3/4 rectangle tube @45°: 1" round solid, 2 3/8 round tube,2 1/8 sq.tube 2 1/2 x 1 7/8 rectangle tube |
Dake
model Cut 250 |
|
|
22
44 |
2.5
|
Yes
|
@90°:
2 5/8 round solid, 3 5/8 round tube,3 1/4 sq.tube 4 1/4 x 2 3/4 rectangle tube @45°: 2 1/2" round solid, 3 1/2 round tube,3 1/8 sq.tube 3 1/4 x 2 3/4 rectangle tube |
Dake
SuperCut 315CE |
|
|
22
44 88 |
2
2.2 3.5 |
Yes
|
@90°:
3 3/8 round solid, 4 3/4 round tube,4 1/8 sq.tube 6 1/4 x 3 1/2 rectangle tube @45°: 3 " round solid, 4" round tube, 3 3/8 sq.tube 3 3/8 x 2 3/4 rectangle tube |
Dake
Technics 350CE |
|
Blade
RPM |
Motor
HP |
Coolant
|
Cutting
Capacity
|
Click below to
Request a Price Quote |
 Options: Automatic Feed System, 78" loading and unloading Tables |
|
22
44 |
2.5
3.5 |
Yes
|
@90°:
3 3/8 round solid, Features:
|
Dake
Technics 350SA Dake
Technics 350A |
|
DAKE Euromatic
semi and fully automatic Cold Saw Automatic
Cold Saw
with 20 inch shuttle feed up that feeds stock with up to 99 strokes. |
 |
Click for Hydraulic Ironworker machines to shear bar stock, angle and plate faster than a saw can cut.
Click for Baileigh Metal Cutting Band Saws
