CNC BED MILLING MACHINES
We sell the American and Birmingham Bed Type Mills made in Taiwan with American CNC controllers for the USA, Canada, and Latin America.

American 3-Axis CNC Bed Mill
Click to Request the VBM-1000 Quote
Click to Request the VBM-1270 Quote

	VBM-1000	VBM-1270
Table size	14" x 52" (356 x 1321 mm)	18" x 56.75" (458 x 1442 mm)
Table Load Capacity	2000 Lbs/907 kg	2420 Lbs/1270 kg
Long way Travel (X-axis)	42" (1067 mm)	50" (1270 mm)
Cross Travel (Y-axis)	22" (559 mm)	22" (559 mm)
Head Vertical (Z-Axis)	23" (584 mm)	24" (610 mm)

• Variable Speed Head: 7.5 HP Constant / 10 HP Peak / 70 to 4200 RPM
• Spindle Taper: #40 Erickson
• Positioning Accuracy: ±0.0004" (±0.01 mm)
• Repeatability: ±0.0002" (±0.005 mm)
• Special Heavy Duty Meehanite castings to support up to 2420 pounds
• 4-way bed for maximum rigidity and stablility - 35º across the ways
• Hardened & ground ways with Turcite B anti-friction bearing material
• Extra wide saddle assembly with 90% bearing supported table length
• Extra large table ideal for large dies and molds, with 50" X axis travel
• Full Automatic Lubrication
• Large diameter precision double-nut ball screws on all three axes
• Manual handwheels on X-Y and Quill o Head counterweight system
• Flood coolant system with rear splash guard
• Steel telescopic way covers on X, Y and Z
• Chip & coolant tray
• Halogen work light
• ISO-9002 Quality Certified

American-Lagun 3 axis CNC Bed Mill Machine

• ANILAM 5300M CNC Control System
*32 bit PC hardware
*G-codes with conversational help menu
* Integrated CAM programming
* Enhanced mold and die capability
* Isometric color graphics and advanced editing
* TFT 12" LCD flat screen or 14" color monitor
• Options Available:
* U.L. approved or NFPA electronics
* 4th and 5th Axis
* Programmable rotary table/indexers
* EVS drive
* Erikson #40 Quick change Nut
* Mist coolant system
* Table splash guard with slide doors
* Extra large 20" x 67" table with 2650 Lbs load capacity

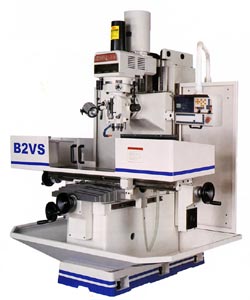

B2VS CNC Bed Type Mill
(made in Taiwan)
with CENTROID M-400 CONTROL
(made in USA)
Click to Request a Quote for this machine
• Table size: 10" x 54"
• Travel: X = 30", Y = 18", Z = 19"
• Table Load Capacity: 1500 pounds
• Spindle Taper: NT-30/40 or R-8
• Spindle Speeds: 130 - 5160 RPM
• Centroid M400 CNC
• Heavy-duty meehanite castings
• Hardened & ground square ways
• Turcite-coated surfaces
• Hardwheels for all axis
• Manual or automatic quill
• Easy to use control with Mastercam
• Auto lubrication
• Power draw bar
• Halogen work light
• Coolant system
• Table top enclosure
• Base chip coolant drop pan

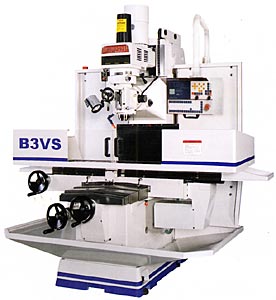

B3VS Bed Type Mill (made in Taiwan)
with CENTROID M400 CONTROL (USA made)
Click to see a VIDEO of the B3VS Bed Mill
Click to Request a Quote for this machine
• Table size: 12" x 60"
• Travel: X = 41", Y = 20", Z = 23"
• Table Load Capacity: 2200 pounds
• Spindle Taper: NT-40 or CAT-40
• Spindle Speeds: 130 - 5160 RPM
• Centroid M400 CNC
• Heavy-duty meehanite castings
• Hardened & ground square ways
• Turcite-coated surfaces
• Hardwheels for all axis
• Manual or automatic quill
• Easy to use control with Mastercam
• Auto lubrication
• Power draw bar
• Halogen work light
• Coolant system
• Table top enclosure
• Base chip coolant drop pan

Birmingham B2VS Bed type Milling machine

CENTROID M400 CNC Control:
• Three Axis Simultaneous
• 15" Color LCD Screen With Graphics
• Pentium Processor
• Ethernet Card
• USB Port
• RS-232 Communication
• Hard Drive
• Expandable to 4th Axis*
• Teach Mode
• 2 & 3D Graphics
• Math Help
• Canned Cycles
• Fast Setup Parts
• 32 Bit PC Based DSP Technology
• Coolant Controls**
• Output For Auto Lube
• Programmable Spindle
• Easy switch over to Spanish / Espanol

Powerful control with user-friendly operation.
Cut parts the first day with CENTROID's straight-forward operation. Machine parts not possible with other controls. Get more work through a machine with faster setups. Produce parts with a better surface finish. Spend less time programming and more time making chips. Bring in more work and bid on higher paying jobs.

Useful Tools for quicker job turn around.
Stop and restart the job at any point. Stop, make any adjustments, and restart right where you left off. Toolpath Graphics show you the cutter path before & while running the job. On-the-fly override control of feeds and speeds. Useful Help Screens guide you through Setup and Programming. Large Color LCD display is easy to read. Run large part programs with no limitations. High Speed processing provides smooth machining, no gouging. Fast, smooth continuous tool motion, no hesitation or dwell.

Dedicated control panel for Milling functions.
Clearly labeled controls for each axis and direction. Dedicated buttons for spindle and coolant controls. Spindle speed override and Feedrate override. Tool Check, Feed Hold, Cycle Start, Rapid override, Incremental and Continuous Jog, Single Block. Customize with Tool index +/-, Clamp/Unclamp, Vac on/off, & more. Extra auxiliary buttons are programmable for special applications. Fully sealed, coolant proof, long-lasting in shop environment. Tactile feedback, raised buttons with distinct action. Indicator lights show the selection made.

Conversational Programming is fast and easy.
Program parts right at the control or offline with your desktop PC Convert geometry from DXF files to Centroid's Intercon operations. Supports contouring, pocketing, framing, drilling, boring, tapping, & threading. Centroid's Intercon generates the G codes for you. Help screens for all the common milling cycles, just fill in the dimensions. Even lines and arcs are canned cycles. A graph of the part shows your work as you go. Graph at any point. Automatic pocket cleanout, Intercon auto creates the roughing and finish passes automatically. Fill in the blank: Threadmilling, Drilling, (3 types of cycles), Tapping (Rigid, Rigid peck tapping, Floating), Pocketing, Facing, Auto connect radius, Lines, Arcs, Math Help, Teach in and much more!

ACCU Mill with Centroid M400 CNC Control:
• CNC Controller is made in the USA
• One Day of On-site training usually included
• Power backup (30minutes)
• Easy cosole switch from CNC to manual DRO
• High precision ballscrews for accurate positioning
• Heavy gusy servo motors capable of machining parts at rated capacity of machine
• 23"/LB DC servo motors
• CNC control runs on 110V AC power
• Mitutoyo linear glass scales for closed loop feedback
• 15" LCD color LCD monitor, real-time graphics display, user-friendly touchpad
• Pentium processor, Windows® operating system
• RS232 Port
• USB Port
• Direct G-Code

Scoll down for photo of Centroid Control Panel

USB drive for quick and easy file transfer.
All CENTROID CNC controls are equipped with a USB port and floppy drive. Having a standard PC compatible USB port makes file transfers fast and easy. Program parts on your desktop PC and transfer to control Bring in part programs from offline CAD/CAM systems Back up programs to floppy disk or USB flash drive. Transfer programs from one control to another.

Large color LCD display for easy operation and programming. No other control has such a large easy-to-read display. With a special no-glare coating, the CENTROID LCD display is sealed from liquids and greasy fingers. With the 15" display, Programming, Editing, and viewing tool paths is now a joy. Large bright letters. Color tool path graphics shows cutter comp moves. Easy to view from any angle. No flicker, no ghosting, long life, runs cool. Perfectly flat for accruate graphics. Sealed from shop coolant and oils. Special no-glare coating.

Dedicated CNC control panel is straight forward. Individual dedicated buttons for all common machine functions. One-button operation to Jog an axis. One-button tool check Sealed from shop coolant and oils. Long-lasting, durable overlay. Tactile feedback (button depresses with distinct feel). Easy to read, well-labeled, intuitive layout

Color Tool Path Graphics show tool path of cutter comp moves. Make fewer programming errors with our excellent tool path graphics. Instantly see the tool path at any point while you are programming. Great for checking your work as you go. Run-time graphics show you the cutter position while the job is being machined. Great for large machines and for when the cutter is buried in flood coolant. Graph and edit G code programs from any source right at the control. Graph Digitized part programs. All 2D views and 3D, zoom in/out, slow down or speed up, pause graph, graph any the whole part or just a section, different color of lines for different types of moves. Very accurate run-time estimation. True backplot graphics, WYSIWYG. What you see is what you get -- not just a guess like other graphics!

Optional Equipment:
• Fully Closed Way Covers on Column
• Rear Column Chip Guard
• 4th Axis Drive Interface
• Rotary Table(s)
• Tooling Package
• Clamping System
• Precision CNC Vises
• Pallet Vises
• TT-1 Touch-off Kit
• Engraving Software
• 2D and 3D Digitizing
• Part and Fixture Probing
• CNC Engraving
• Rigid Tapping
• Auto Tool Setter
• MPG Handwheel
