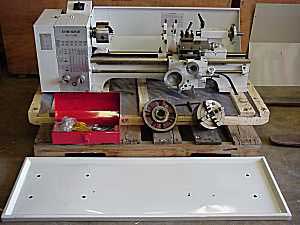

Birmingham YCL920BD and YCL1126BD Lathes
• Economical belt drive
• Threading and feeding rate changeable
• 27 kinds of inch threads, and 11 kinds of metric threads.
• Spindle is balanced, hardened and precision ground
• Guideways induction hardened an precision ground
• Lubrication system in headstock and feed box
• Operation and parts manual
•
Made in China with one year warranty on parts
|
Standard Equipment:
•
3-jaw chuck
•
4-jaw chuck
•
8" face plate
•
Follow rest
•
Tool post
•
Full length splash guard
•
(2) dead centers
• Thread chasing dial
|
Options available:
• (2) cabinet stands
•
Halogen work light
•
Digital Readout
•
Coolant system
|
|
|
Birmingham YCL920BD Lathe: $1250.
Call
773-334-5000 to order this machine.
Click
to see a VIDEO of this machine
|
Max. diameter swing over bed: 9"
Max distance between centers: 20"
Max. diameter swing over cross slide: 5-5/16"
Spindle bore: 25/32"
Taper of spindle center: MT3 (Morse Taper#3)
6 Spindle speeds from 130-2000 rpm
Longitudinal feeds (3): 0.005-0.011" /rev
27 kinds of Inch threads from 8 to 56 threads per inch
11 kinds Metric threads from 0.5 to 3 mm
Max. travel of cross slide: 5"
Taper of tailstock quill center: MT2
Motor electrics: 3/4 HP, 115 Volts, 1 Phase
Machine weight: 248 Lbs. |
Birmingham YCL1126BD Lathe:
$1595.
 |
Max. diameter
swing over bed: 11"
Max distance between centers: 26"
Max. diameter swing over cross slide: 6-1/2"
Spindle bore: 1"
Taper of spindle center: MT4 (Morse Taper#4)
6 Spindle speeds from 150-2400 rpm
Longitudinal feeds (3): 0.023-0.007" /rev
27 kinds of Inch threads from 8 to 56 threads per inch
11 kinds Metric threads from 0.5 to 3 mm
Max. travel of cross slide: 7"
Taper of tailstock quill center: MT3
Motor electrics: 1 HP, 115 Volts, 1 Phase
Machine weight: 368 Lbs.
|
|

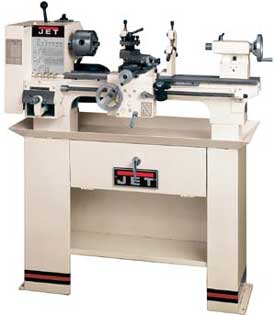

JET
BD920N Lathe: $2145.
(includes Stand)
• Spindle supported by precision tapered roller bearings
• Hardened and ground bedways
• Power longitudinal feed allows threading
• Standard 1-1/2" x 8 TPI spindle mount allows for many aftermarket
accessories
• Reversing switch included for added versatility
• Backlash adjustments provided throughout the carriage
• Tailstock is adjustable for taper cuts
• Quick-change gear box provides wide range of inch and metric
threads
STANDARD EQUIPMENT
• 7" four-jaw chuck with threaded back plate
• 4" three-jaw chuck with threaded back plate
• Face plate • Four-way tool post • Single tool
post • Steady and follow rest • Metric change gears
• Centers • Threading dial • Tool box and tools
|
Stock No.
321373 Model BD-920N
• Swing Over Bed (In.) 8-3/4
• Swing Over Cross Slide (In.) 5-1/4
• Distance Between Centers (In.) 20
• Hole Through Spindle (In.) 25/32
• Spindle Mount (in. xTPI) 1-1/2 x 8
• Spindle Taper MT-3
• Spindle Speeds 6
• Spindle Speed Range (RPM) 130-2,000
• Longitudinal Feeds 27
• Longitudal Feed Range (in. /rev.) 0.005-0.011
• Inch Threads 27
• Inch Thread Range 8-56 TPI
• Metric Threads 11
• Metric Thread Range (mm) .5-3
• Maximum Tool Size (In.) 1/2x1/2
• Compound Slide Travel (In.) 1-7/8
• Cross Slide Travel (In.) 5
• Carriage Travel (In.) 16
• Tailstock Spindle Travel (In.) 1-9/16
• Taiistock Spindle Taper MT-2
• Steady Rest Capacity (In.) 1-7/8
• Follow Rest Capacity (In.) 1-7/8
• Bed Width (In.) 4-7/8
• Size with Stand (LxWxH/in.) 37.5 x 20x45
• Motor (TEFC) 3/4 HP, 1 Phase, 115 Volts
• Weight (Lbs.) 235
OPTIONAL
ACCESSORIES:
* Cabinet Stand $275.
* MT-2 Live Center
|
|
BIRMINGHAM YCL 12"swing x 36" Geared Head Bench
Lathe Machine
•
Floor stand included
• 2 HP, 220 volt, 1 phase main motor
• 9 spindle speeds from 70 - 1400 RPM
Standard Equipment: • 6" 3-jaw chuck • 8" 4-jaw chuck
• 10" face plate • 1-1/2" spindle bore • 3 3/4"
steady rest • follow rest • Gap • 4-way tool post
• thread chasing dial • 2 dead centers • reducing
sleave • full splash guard • chip tray
• Automatic longitudinal and cross feeding
• Hardened and ground Spindle and Bedways
12" swing x 36" center distance Precision Geared Head Gap Bench
type lathe including Floor stand: $2995.
Normally in stock. Manufactured in China.
Click
to request more information YCL-12x36
|
Options:
• Taper Turning attachment
• Micro Carriage Stop
• 5-C Lever Collet Closer
• 2 axis Digital Readout
|
Combination
Lathe-Milling machine
SMITHY Machines: Are you looking for a benchtop lathe and a mini
mill and a small drilling machine all in one? A Smithy machine is the
way to go. Low cost, compact, dependable, and accurate. Smithy has great
tech support and lots of tooling available too.
Options: Cover, Steady Rest, Follow Rest, live center, 4 jaw
chuck, faceplate, digital readout, boring tools, light with magnet base,
Coolant system, lathe dog, collet set, 5C collet chuck, quick change
tool post, drawbars, swivel vise, adjustable angle vise, slotted angle
plate, rotary table, dividing head, dividing plates, milling cutters,
drill bits.
|
SMITHY
MIDAS-1220XL:
Click
to request quote for this machine
|
This combination
metalworking lathe-mill is packed with features including
MT3 taper in Mill Head, Half Nut & adjustable-height
Mill Head.
• Adjustable-height
mill/drillhead for increased working area.
• Large MT4 spindle with bore-through accepts 1" standard
bar stock.
• Right-hand, left-hand, inch, and metric threading
standard.
• Microfeed handle and clutch for precision milling.
• Millhead accepts MT3 tooling
• Standard 7/16" table T-slots for tools and accessories.
• Offset tailstock for small tapers and greater accuracy.
• You'll get quick and sure readings from all inch
dials.
• Powerfeed on X-axis.
|
|
•
Power: 3/4 hp, 110 volts
• Machine dimensions: 42"L, 20"W, 34"H
• Crate dimensions: 44" L, 23" W, 38" H
• Shipping weight: 550 lbs
• Machine weight: 400 lbs
• Calibrated dials: leadscrew & cross-slide: 0.002"
tailstock: 0.002" mill and drill: 0.040"
Smithy Lathe:
• Swing diameter: 12" over bed, 7" over table
• Distance between centers: 20"
• Spindle bore: 1.03"
• Tapers: headstock MT4; tailstock MT3
• Speeds: 6 (160 to 1600 rpm)
• Thread Pitches: 6 to 120 TPI, metric 0.5 to 4mm
• Travel: 20" longitudinal, 8" cross-slide
|
Smithy Mill:
• Millhead taper: MT3
• Table dimensions: 5-3/4" x 16-1/2"
• T-slot width: standard 7/16"
• Speeds: 12 (125 to 1600 rpm)
• Quill diamiter: 3"
• Working height: 6-1/4" min., 13" max.
• Quill center to lathe spindle face: 5-1/2"
• Accepts end mills up to 1-1/4" diameter
• Mill/drillhead stock swivel: 360 degrees
Smithy Drill:
• 1/2" precision chuck (3/4" optional)
• Chuck arbor taper: MT3
• Spindle to support column: 6.9"
• Cutting depth: 3.75"
• Speeds: 12 (125 to 1600 rpm)
|
|
|
SMITHY MIDAS-1220LTD:
Click to request quote for this machine
|
This combination
lathe-mill is an extended capacity model! The Midas 1220
LTD is packed with all the features of our Midas 1220 XL
plus a whole lot more such as:
• Faster
mill changeover (leave the chuck on your lathe) & greater
capacity - 12" clearance between mill spindle and column.
• Always
turn at the right speed - our patented quick-release belt
tensioners make spindle speed changes a breeze.
• Cut time
in half with our rapid traverse rack & pinion carriage
travel.
• Effortless
thread cutting with fully reversing lead-screw, half-nut
and threading dial.
• Added rigidity,
for those large mill set-ups, with dual column locks on
the mill head.
• Powerfeed
on X-axis and Y-axis
|
|
• Power:
Twin, 3/4 hp lathe, 1/2 hp mill
•
Machine dimensions: 42" L, 20" W, 34" H
•
Crate dimensions: 44" L, 23" W, 38" H
•
Shipping weight: 620 lb
•
Machine weight: 500 lb
•
Calibrated dials: leadscrew & cross-slide: 0.002" tailstock:
0.002" mill and drill: 0.040"
Smithy Lathe:
• Swing diameter: 12" over bed, 7" over table
• Distance between centers: 20"
• Spindle bore: 1.03"
• Tapers: headstock MT4; tailstock MT3
• Speeds: 6 (160 to 1600 rpm)
• Thread Pitches: 6 to 30 TPI, metric 0.5 to 4 mm
• Travel: 20" longitudinal, 8" cross-slide
|
Smithy Mill:
• Millhead taper: MT3
• Table dimensions: 6" x 16-3/4"
• T-slot width: standard 7/16"
• Speeds: 9 (315 to 2000 rpm)
• Quill diamiter: 3"
• Working height: 6-1/4" min., 13" max.
• Quill center to lathe spindle face: 11"
• Accepts end mills up to 1-1/4" diameter
•
Mill/drillhead stock swivel: 180 degrees
Smithy Drill:
• 1/2" precision chuck (3/4" optional)
• Chuck arbor taper: MT3
• Spindle to table: 6-1/4 to 13"
• Cutting depth: 3.125"
• Speeds: 9 (315 to 2000 rpm)
|
|
|
SMITHY GRANITE 1324:
Click to request quote for this machine
The
Granite 1324 is a next-generation multipurpose machine.
It is a 3-in-1 machine built to light industrial standards.
Its features and performance set it apart from all the rest
and set a new standard in combination lathe-mill-drill machines.
|
• Higher
tolerances: Built to light industrial standards.
Produce higher-quality work on every job.
• More
power: Powerful 1.5 hp motor provides plenty of
torque while the variable speed control gives you a broad
working range (50-3000 rpm).
• Easy
changeovers: Cam-lock lathe chuck
and easy shift power transfer clutch makes lathe-to-mill/drill
changes quick and easy.
• Greater
milling capacity: Provided by the R-8 (the Bridgeport™
standard) collet and deeper quill depth.
• Effortless
thread cutting: Quick-change gearbox, inch-metric
selector, and rack & pinion carriage travel combine
to make thread cutting easy.
• Higher-quality
finish work: The leadscrew and crossfeed powerfeed
(on both the lathe and mill) give you a polished finish.
|
|
•
Power: 1.5 HP DC motor, 110 volts, 15 Amps
Optional 220 volts, 1 phase at 8 Amps
• Machine
size: 46 x 22-1/2 x 39"
• Weight: Shipping, 775 lbs;
machine, 660 lbs
• Manufacturing: Castings & frame
made in China; electrical module made
in USA
•
Calibrated dials: leadscrew 0.001",
cross slide 0.001", tailstock 0.001",
mill & drill 0.001" fine feed, 0.05"
fast feed
Smithy
Lathe:
• Swing: 13" over bed, 7-1/2"
over table
• Distance between centers: 24"
• Camlock spindle: D1-4
• Spindle bore: 1-1/8"
• Headstock taper: MT4
• Tailstock taper: MT3
• Pitches: 7-52 threads/inch and 0.35-6.5 mm
• Cross-slide travel: 7-5/8"
•
Speeds: Variable 0 to 2800 rpm
|
Smithy Mill:
• Millhead taper: R-8
• Table: 17-3/4 x 6-1/2"
• T-slot width: 7/16"
• X-axis travel: 9-1/2"
• Y-axis travel: 7-5/8"
• Spindle diameter: 2-7/8"
• Working height: 4" min, 13-3/8"
max
•
Speeds: Variable 0 to 2800 rpm
•
Mill/drillhead stock swivel: 360°
Smithy
Drill:
• 5/8" precision chuck (3/4" optional)
• Chuck arbor taper: R-8 / JT3
• Spindle to table distance:
4" min, 13-3/8" max
• Spindle to support column: 9-1/2"
•
Speeds: Variable 0 to 2800 rpm
|
|
|
SMITHY GRANITE 1340:
Click to request quote for this machine
The
Granite 1340 is the extra long next-generation multipurpose
machine built to light industrial standards. Its features
and performance set it apart from all the rest and set a
new standard in combination lathe-mill-drill machines.
|
• Extra
long machine: 40" lathe centers
• Higher
tolerances: Built to light industrial standards.
Produce higher-quality work on every job.
• More
power: Powerful 1.5 hp motor provides plenty of
torque while the variable speed control gives you a broad
working range (50-3000 rpm).
• Easy
changeovers: Cam-lock lathe chuck
and easy shift power transfer clutch makes lathe-to-mill/drill
changes quick and easy.
• Greater
milling capacity: Provided by the R-8 (the Bridgeport™
standard) collet and deeper quill depth.
• Effortless
thread cutting: Quick-change gearbox, inch-metric
selector, and rack & pinion carriage travel combine
to make thread cutting easy.
• Higher-quality
finish work: The leadscrew and crossfeed powerfeed
(on both the lathe and mill) give you a polished finish.
|
|
•
Power: 1.5 HP DC motor, 110 volts, 15 Amps
Optional 220 volts, 1 phase at 8 Amps
•
Machine
size: 62 x 22-1/2 x 39"
•
Weight: Shipping, 910 lbs; machine,
730 lbs
•
Manufacturing: Castings & frame made
in China; electrical module made in USA
•
Calibrated dials: leadscrew 0.001",
cross slide 0.001", tailstock 0.001",
mill & drill 0.001" fine feed, 0.05"
fast feed
Smithy
Lathe:
• Swing: 13" over bed, 7-1/2"
over table
• Distance between centers: 40"
• Camlock spindle: D1-4
• Spindle bore: 1-1/8"
• Headstock taper: MT4
• Tailstock taper: MT3
• Pitches: 7-52 threads/inch and 0.35-6.5 mm
• Cross-slide travel: 7-5/8"
•
Speeds: Variable 0 to 2800 rpm
|
Smithy Mill:
• Millhead taper: R-8
• Table: 17-3/4 x 6-1/2"
• T-slot width: 7/16"
• X-axis travel: 9-1/2"
• Y-axis travel: 7-5/8"
• Spindle diameter: 2-7/8"
• Working height: 4" min, 13-3/8"
max
•
Speeds: Variable 0 to 2800 rpm
•
Mill/drillhead stock swivel: 360°
Smithy Drill:
• 5/8" precision chuck (3/4"
optional)
• Chuck arbor taper: R-8 / JT3
• Spindle to table distance:
4" min, 13-3/8" max
• Spindle to support column: 9-1/2"
•
Speeds: Variable 0 to 2800 rpm
|
|
Click for full size metal
turning Lathes
|
