Cosen vertical and horizontal BandSaws:

Cosen BandSaws are great quality are a reasonable price. Made in Taiwan by a long time family owned factory to excellent design standards. Saw manufacturers since 1976, they have carefully engineered a huge line of horizontal and vertical bandsaw machines. Over 100 different sizes and configurations. Below are the most popular. Cosens are available from medium size up to giant sizes for plate sawing and pipe cutting machines. From manual swivel head operation to automatic CNC and everything in between. For general shop cutting use up to automation mass production machines with traversing head. Something for everyone. Replacement parts can be ordered directly from the factory website! No surprise that Cosen Saws are sold in 80 different countries.

When choosing a saw that miters pay close attention to the cutting angle examples shown here. Which direction do you want to miter. To the left or to the right. Also notice that some machines have a swivel head to quickly change the angle you want to cut. Other machines are not designed for fast miter cutting but allow you to swivel the vise for rare angle cutting. For those machines there is no data available about their capacities when swiveling the vise. Therefore, if you need to miter, choose a bandsaw with a swivel head. While scrolling down to see our huge selection of Cosens, please remember that the price increases as the machines get larger and more features.
-60 degree miter-45 degree miter0 degree miter+45 degree miter+60 degree miter

American Machine Tools Company is accedited by the Better Business Bureau! Click to verify. We accept credit cards for up to $10,000.

BANDSAWS FOR GENERAL SHOP & FACTORY USE

COSEN MH-270M
Manual Swivel Head Fast Mitering Bandsaw

FEATURES:
• Swivel saw frame for fast miter cutting capability adjustable left cutting angle from 0 to 60 degrees.
• Coolant system.
• Quick clamping vise, equipped with quick short range sliding device
• Blade tensioning system fitted with light indicator and fixed screw for blade integrity checking
• Quick blade changeover with no need of tools
• Adjustable material stopper for mass-produced cuts
• Wire blade chip brush.
Weight of machine: 550 Lbs [250 Kgs]
• Size of machine: 53" x 28" x 52.2"
• Shipping size: [1365 x 720 x 750 mm].
You assemble the stand.

Click to Request a Quote for the MH-270M


SPECIFICATIONS:
Round @ 0 degrees: 8.75" [225 mm]
Round @ 45 degrees: 5.75" [145 mm]
Round @ 60 degrees: 3.5" [90 mm]
Rectangular (HxW) @ 0 deg:
9.37" x 6" [240 x 150 mm]
Rectangular @ 45 degrees:
5.75" x 8" [145 x 210 mm]
Rectangular @ 60 degrees:
3.5" x 7" [90 x 180 mm]
Saw Blade Size:
97.64" x 1.06" x .035"[2480 x 27 x 0.9 mm]
Blade Speeds:
132 & 264 feet per minute [40 & 80 mpm]

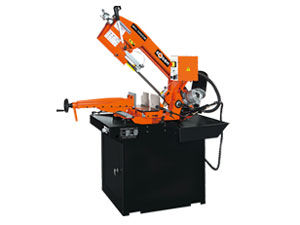

COSEN MH-300DM
Manual Double Swivel Head Dual Mitering Bandsaw

FEATURES:
• Auto-cut band saw, Max cutting capacity at 10 inches [260 mm].
• Fast Miter cutting from 0° to 60° left and 0° to 45° right
• Start-button inside the operation handle
• 3-way Selector:
1. Manual cut
2. Rapid positioning of the saw-frame towards the material
3. Automatic cut with adjustable down-feed rate
• Adjustment of the blade tension from the front side of the saw-frame, checked by a tension gauge
• Blade guides with metal pads
• Integrated coolant system
• Quick clamping vise, equipped with quick short range sliding device, max capacity 11.5" [300 mm]
• Recede from two-support vise to increase cutting capacity to 13" [330 mm].
• The Bearing Turn System on the swivel head of the machine allows the saw-head to be turned by 2 fingers.
• Chips are easily cleaned with a removable tray.
Weight of machine: 704 Lbs [320 Kgs]
• Size of machine:53"x28"x52" [1350x715x1326mm]
Click to Request a Quote for the MH-300DM


SPECIFICATIONS:
Round @ 0 degrees: 10.2" [260 mm]
Round @ +45 degrees: 9.45" [240 mm]
Round @ +60 degrees: 6.3" [160 mm]
Round @ -45 degrees: 7.5" [190 mm]
Rectangular (HxW) @ 0 deg:
11.6" x 9" [295 x 230 mm]
Rectangular @ 45 degrees:
8.9" x 8.5" [225 x 215 mm]
Rectangular @ 60 degrees:
6.3" x 5.1" [160 x 130 mm]
Rectangular @ - 45 degrees:
7.5" x 7.5" [190 x 190 mm]
Saw Blade Size:
116.7" x 1.06" x .035"[2965 x 27 x 0.9 mm]
Blade Speeds:
122 & 231 feet per minute [37 & 74 mpm]

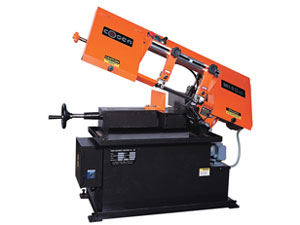

COSEN MH-812LC
Manual Swivel Vise Mitering BandSaw

FEATURES:
• Head does not swivel, only vise does
• Heavy-duty hydraulic cylinder with precision ground hinge support
• Cast iron quick set up vise
• Pan shaped base with built-in coolant & hydraulic system
• Blade Drive has 1 hp motor, heavy-duty reducer, & variable step drive assembly
• 4-speed transmission with the best worm gear and shaft
• Carbide blade guides with roller bearings
• Two addtional bearings to support blade from the top
• Integral coolant system
• Blade brush Control & Automation
• Down feed rate & cutting pressure control via hydraulic down feed valve
• Simplified control switches mounted on saw head
• Cast iron vises
• Secure clamping via dependable manual lead screw system
• Anti-slip hand wheel
• Orange alert safety design
• Easy blade change with front access at waist level
• Manual blade tension adjustment
• Bi-metal saw blade
• Tool box, leveling pads, and an additional wire brush
• Operation & parts manual
Click to Request a Quote for the MH-812LC


SPECIFICATIONS:
Round @ 0 degrees: 8" [200mm]
Square @ 0 degrees: 7" [180mm]
Rectangular @ 0 degrees:
7" x 11.4" [180 x 290mm]
Saw Blade Size:
107" x 1.06" x 0.035" [2720 x 27 x 0.9mm]
Blade Speeds:
49,80,129,217 fpm [15,24,39,66 m/min]
Table Height 630 mm (24.8")
Motor: Blade 1 HP, Coolant 1/8 HP
Weight of machine: 484 Lbs [220 kgs]
Size of machine:
56" x 24.5" x 45" [1450 x 625x 1145 mm]
Shipping size: 1475 x 762x 1220 mm

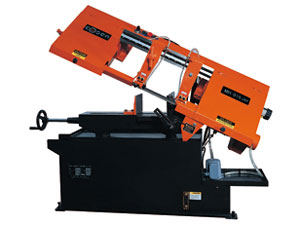

COSEN MH-916JRP
Manual Swivel Vise Mitering BandSaw

FEATURES:
• Head does not swivel, only vise does
• Heavy-duty hydraulic cylinder with precision ground hinge support
• Cast iron quick set up vise
• Pan shaped base with built-in coolant & hydraulic system
• Carbide blade guides with roller bearings
• Two exta bearings to support blade from the top
• Rigid guide arms mounted on extra wide precision ground dovetail slide
• Integral coolant system
• Blade brush
• Down feed rate & cutting pressure control via hydraulic down feed valve
• Simplified control switches mounted on saw head
• Cast iron vises
• Secure clamping via dependable manual lead screw system
• Anti-slip hand wheel
• Protective conduit
• Easy blade change with front access at waist level
• Manual blade tension adjustment
• Bi-metal saw blade
• Tool box, leveling pads, an additional wire brush
• Operation & parts manual
Click to Request a Quote for the MH-916JRP


SPECIFICATIONS:
Round @ 0 degrees: 9" [230mm]
Square @ 0 degrees: 9" [230mm]
Rectangular (H x W) @ 0 degrees:
9" x 14.5" [230 x 370 mm]
Saw Blade Size:
132" x 1.06" x 0.035" [3350 x 27 x 0.9mm]
Blade Speeds:
82,127,186,300 fpm [25,39,57,92 m/min]
Motor: Blade 2 HP, Coolant 1/8 HP
Weight of machine: 902 Lbs [410 kgs]
Size of machine: 63" x 28" x 42.5"
Shipping size: 1700 x 787 x 1220 mm

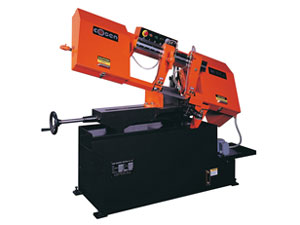

COSEN MH-1016JA
Manual Swivel Vise Mitering BandSaw

FEATURES:
• Available with hydraulic vise (SH-1016JA option)
• Head does not swivel, only vise does
• Heavy-duty hydraulic cylinder with precision ground hinge support
• Cast iron quick set up vise
• Large rugged base with built-in coolant & hydraulic system
• 2 hp motor, heavy-duty reducer, & variable step drive assembly
• 4-speed transmission with the best worm gear and shaft
• Carbide blade guides with roller bearings
• Two additional bearings to support blade from the top
• Rigid guide arms mounted on extra wide precision ground dovetail slide
• Integral coolant system
• Blade brush
• Down feed rate & cutting pressure control via hydraulic down feed valve
• Conveniently designed control station at chest level
• Cast iron vise
• Secure clamping via dependable manual lead screw system
• Anti-slip hand wheel
• Easy blade change with front access at waist level
• Bi-metal saw blade
• Tool box, leveling pads, an additional wire brush
• Operation & parts manual
Click to Request a Quote for the MH-1016JA


SPECIFICATIONS:
Round @ 0 degrees: 10" [250 mm]
Square @ 0 degrees: 9" [230 mm]
Rectangular (H x W) @ 0 degrees:
9" x 14.5" [230 x 370 mm]
Saw Blade Size:
132" x 1.06" x 0.035" [3350 x 27 x 0.9mm]
Blade Speeds:
75,121,190,305 fpm [23,37,58,93 m/min]
Motor: Blade 2 HP, Coolant 1/8 HP
Table height: 25.6" [650mm]
Weight of machine: 950 Lbs. [432 kgs]
Size of machine:
66" x 28" x 70" [1680 x 710 x 1780 mm]

COSEN MH-1018JA
Manual Swivel Vise Mitering BandSaw

FEATURES:
• Strong and powerful gearbox to bear the tension of the saw blade
• Head does not swivel, only vise does
• Tungsten carbide blade guide and guide bearing
• Dovetail of saw blade guide
• Fast clamping vise
• Precise hydraulic blade downfeed
• Automatic power off when cut is finished
• Rigid base and cast bed
• Coolant supply
• Chip collector
• Industrial coolant pump
• Bi-metal saw blade
• Tool box, leveling pads, an additional wire brush
• Operation & parts manual
Click to Request a Quote for the MH-1018JA


SPECIFICATIONS:
Round @ 0 degrees: 10" [250 mm]
Square @ 0 degrees: 9" [230 mm]
Rectangular (H x W) @ 0 degrees:
9" x 18" [230 x 460 mm]
Saw Blade Size:
138" x 1.06" x 0.035" [3505 x 27 x 0.9mm]
Blade Speeds:
95, 150, 213, 321 fpm[29,46,65,98 M/min]
Motor: Blade 2 HP, Coolant 1/8 HP
Table height: 25.6" [650mm]
Weight of machine: 950 Lbs. [432 kgs]
Size of machine: 68" x 29" x 41"
Shipping size: 1830 x 817 x 1160 mm

BANDSAWS FOR CUTTING STRUCTURAL STEEL, TUBING & PIPE

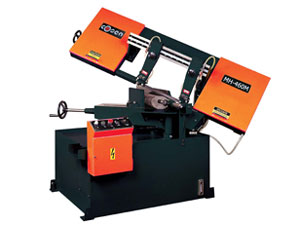

COSEN MH-460M
Swivel Head Fast Mitering BandSaw

FEATURES:
• Swivel sawhead mitering from 90 to 60 degrees
• Specially designed heavy-duty cast iron swivel center
• Large easy-to-read mitering scale
• Large rugged base with built-in coolant return
• Manual Blade Tensioning
• Carbide blade guides with roller bearings
• Two extra bearings to support blade from the top
• Cast iron guide arm supported by heavy-duty cast iron dovetail
• Integral coolant system
• Blade brush
• Down feed rate & cutting pressure control via hydraulic down feed valve
• Conveniently designed control station at chest level
• Cast iron vises with replaceable extension plate
• Secure clamping via manual lead screw system
• Anti-slip handwheel
• Adjustable material stop
• Bi-metal saw blade
• Tool box, leveling pads, and extra wire brush
• Operation & parts manual
• Available with optional semi-automatic hydraulic sawhead lift after cutting is complete (SH-460M option)
Click to Request a Quote for the MH-460M


SPECIFICATIONS:
Round @ 0 degrees:10" [250 mm]
Round @ -45 degrees:9" [230 mm]
Round @ -60 degrees: 4.3" [110mm]
Rectangular (H x W) @ 0 degrees:
9" x 18.1" [230 x 460 mm]
Rectangular @ -45 degrees:
9" x 9" [230 x 230 mm]
Rectangular @ -60 degrees:
9" x 4.3" [230 x 110 mm]
Saw Blade Size:
138" x 1" x 0.035" [3505 x 27 x 0.9mm]
Blade Speeds:
95, 150, 213, 321 fpm [29,46,65,98 m/min]
Motor: Blade 2 HP, Coolant pump 1/8 HP
Work bed height: 25.4" [645 mm]
Weight of machine: 1430 Lbs [650 kgs]
Size of machine: 55" x 74.8" x 66.9"
Shipping size: 1855 x 1220 x 1170 mm

COSEN MH-500M
Swivel Head Fast Mitering BandSaw

FEATURES:
• Swivel saw frame is an ideal design for angle cutting. Due to the design, the material remains in a safe clamped position. Angle change can be made by moving bow. It is done without tools in a matter of seconds.
• Hydraulic feed flow control valve provides an infinite range of cutting feed rate.
• Blade tension indicator ensures the proper tension for a better blade life and cutting performance.
• Power blade brush cleans blade gullets that will give you of a longer blade life, and increase cutting performance.
• Rigid & well-welded structure for accuracy demand under heavy-cutting loads.
• High performance, simple operation and maintenance.
• Economy & productivity reduce the manufacturing overheads—more profit rendered.
• Complete coolant system.
• The turning slide is using to enhance the supporting strength of pivot knuckle.
• Control Station is located at the left side of the machine. The operator does not need to stretch out his hand across the cutting area to control the machine.
• Available with optional semi-automatic hydraulic sawhead lift after cutting is complete (SH-500M option)
Click to Request a Quote for the MH-500M


SPECIFICATIONS:
Round @ 0 degrees:13" [330 mm]
Round @ +45 degrees:11.5" [290 mm]
Round @ +60 degrees: 8.7" [220mm]
Rectangular (H x W) @ 0 degrees:
11" x 19.7" [280 x 500 mm]
Rectangular @ +45 degrees:
11" x 11" [280 x 280 mm]
Rectangular @ +60 degrees:
11" x 7.9" [280 x 200 mm]
Saw Blade Size:
163" x 1" x 0.035" [4150 x 27 x 0.9mm]
Blade Speeds:
75, 117, 166, 247 fpm [23,36,51,76 m/min]
Motor: Blade 2 HP, Hydraulic 1/2 HP, Coolant pump 1/8 HP
Work bed height: 32.3" [820 mm]
Weight of machine: 2178 Lbs [990 kgs]
Size of machine: 74" x 107" x 82"
Shipping size: 2260 x 1190 x 1700 mm

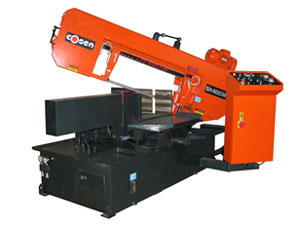

COSEN SH-600DM
Swivel Head Fast Dual Mitering Semi-automatic BandSaw

FEATURES:
• Fast and easy swivel sawhead allows the user to cut at any angle up to 60° in one direction. The precision pivot system provides easy and accurate adjustment of cutting angle. Comes with a protractor and angle pointer in clear view.
• Rigid and heavy-duty pivot and trunion ensure long machine life.
• The infinitely variable-speed blade drive is equipped with a worm gear speed reducer. The worm shaft is hardened and ground. Together, they provide quiet, powerful, and trouble-free drive.
• The bearing guides eliminate blade stress by pre-aligning the blade before it enters the carbide guides. Two additional guides located on a central axis support the blade from the top, giving it extra penetrating force for faster cuts.
• Heavy-duty cast iron guide arms are rigidly supported by a large, heavy-duty ductile cast iron dovetail to assure straight cuts and eliminate vibration for longer blade life.
• Automatic hydraulic blade tensioning device provides correct blade tensioning when the machine is turned on and will reduce tension when the machine is not running. This extends blade life. The on-off hydraulic valve switch is an added feature making blade change quicker and easier.
• Integral coolant system. Coolant is supplied at many critical points: exit & entry of blade through blade guides, middle of cut via adjustable flex hose, and blade cleaning brush.
• Synchronized power driven blade brush cleans chips from blade to extend blade life.
• Dual valve feed system gives optimal cutting performance. The operator can easily pre-select the correct feed pressure and feed rate for efficient cutting of any material.
• The operator’s control station located ergonomically on the front side of the saw is convenient and user friendly. All operator controls are positioned on the top of the control box and clearly labeled for ease of operation. The electrical components are located inside the control box with the main lockout disconnect on the front of the control box for safety and easy maintenance.
• Work height selector. When the head automatically rises after cut-off, the work height can be preset to allow the head to stop rising just above the material. This feature saves time when repeat cutting the same sizes.
• Full stroke machine vise. The machine vise incorporates a full stroking cylinder with two guide columns to provide hydraulic clamping of any material from the operator’s station.
• Multiple horizontal rollers located on the entry side of the saw for smooth material feeding.
Click to Request a Quote for the SH-600DM

SPECIFICATIONS:
Round @ 0 degrees: 13" [330 mm]
Round @ +/-45 degrees: 13" [330 mm]
Round @ -60 degrees: 11.8" [300mm]
Rectangular (H x W) @ 0 degrees:
13" x 23.6" [330 x 600 mm]
Rectangular @ +/-45 degrees:
13" x 16" [330 x 400 mm]
Rectangular @ -60 degrees:
13" x 11.8" [330 x 300 mm]
Saw Blade Size:
192" x 1.3" x 0.042" [4880 x 34 x 1.1mm]
Blade Speeds (variable):
66-330 fpm [20-100 m/min]
Motor: Blade 5 HP, Hydraulic 1 HP, Coolant pump 1/8 HP
Work bed height: 28.35" [720 mm]
Weight of machine: 3300 Lbs [1500 kgs]
Size of machine: 87.4" x 114" x 87"
Shipping size: 3020 x 1500 x 1650 mm

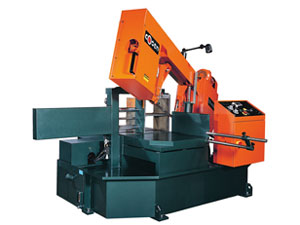

COSEN SH-650M
Hydraulic Swivel Head Fast Mitering Semi-automatic BandSaw

FEATURES:
• Swivel sawhead mitering from 90 to 60 degrees
• Rigid and heavy-duty pivot and trunion
• Sturdy cast work table
• 24.5" solid discharge table with coolant return
• Variable speeds from 80 fpm thru 350 fpm
• Infinitely variable blade speed (option)
• Carbide blade guides with roller bearings
• Two extra bearings to support blade from the top
• Cast iron guide arm supported by heavy-duty cast iron dovetail
• Automatic hydraulic blade tensioning device
• Integral coolant system
• Synchronized blade brush
• Precision feed pressure & feed rate dual valve system
• Conveniently designed control station
• Electrical components located inside the control box with main lockout disconnect
• Work height selector
• Industrial rated hydraulic components
• 24.5" solid discharge table with coolant return
• 36" infeed roller table
• Ful stroke machine vises
• Breakage breakage detector
• Motor start interlock
• Built-in adjustable material stop
• Adjustable work light
• Additional flushing hose
• Bi-metal saw blade
• Tool box, leveling pads, and an extra wire brush
• Operation & parts manual
Click to Request a Quote for the SH-650DM


SPECIFICATIONS:
Round @ 0 degrees: 16.5" [420 mm]
Round @ +45 degrees: 16" [400 mm]
Round @ +60 degrees: 10" [250mm]
Rectangular (H x W) @ 0 degrees:
15" x 25.6" [380 x 650 mm]
Rectangular @ +45 degrees:
16" x 16" [400 x 400 mm]
Rectangular @ +60 degrees:
16" x 10" [400 x 250 mm]
Saw Blade Size:
209" x 1.3" x 0.042" [5300 x 34 x 1.1mm]
Blade Speeds (variable):
66-330 fpm [20-100 m/min]
Motor: Blade 5 HP, Hydraulic 1 HP, Coolant pump 1/8 HP
Work bed height: 29.5" [750 mm]
Weight of machine: 3300 Lbs [1500 kgs]
Size of machine: 90.6" x 114" x 98.4"
Shipping size: 2920 x 2005 x 2110 mm

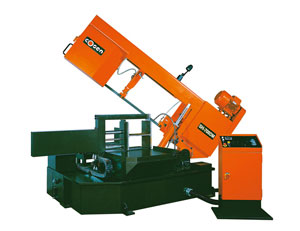

COSEN SH-700DM
Hydraulic Swivel Head Fast Dual Mitering Semi-automatic BandSaw

FEATURES:
• Swivel sawhead mitering from 90 to 60 degrees; 45 degree to both directions
• Rigid and heavy-duty pivot and trunion
• Sturdy cast work table
• 24.5" solid discharge table with coolant return
• Variable speeds from 80 fpm thru 350 fpm
• Infinitely variable blade speed (option)
• Carbide blade guides with roller bearings
• Two addtional bearings to support blade from the top
• Cast iron guide arm supported by heavy-duty cast iron dovetail
• Automatic hydraulic blade tensioning device
• Integral coolant system
• Synchronized blade brush
• Precision feed pressure & feed rate dual valve system
• Conveniently designed control station
• Electrical components located inside the control box with main lockout disconnect
• Work height selector
• Industrial rated hydraulic components
• 620 mm (24.5") solid discharge table with coolant return
• 915 mm (36") infeed roller table
• Horizontal rollers enabling easy material entry
• Ful stroke machine vises
• Breakage breakage detector
• Motor start interlock
• Built-in adjustable material stop
• Adjustable work light
• Additional flushing hose
• Bi-metal saw blade
• Tool box, leveling pads, and an extra wire brush
• Operation & parts manual
Click to Request a Quote for the SH-700DM


SPECIFICATIONS:
Round @ 0 degrees: 17.7" [450 mm]
Round @ +/-45 degrees: 17.7" [450 mm]
Round @ +60 degrees: 11.8" [300mm]
Rectangular (H x W) @ 0 degrees:
17.7" x 27.5" [450 x 700 mm]
Rectangular @ +/-45 degrees:
17.7" x 20.5" [450 x 520 mm]
Rectangular @ +60 degrees:
17.7" x 11.8" [450 x 300 mm]
Saw Blade Size:
228" x 1.6" x 0.050" [5800 x 41 x 1.3mm]
Blade Speeds (variable):
66-330 fpm [20-100 m/min]
Motor: Blade 7.5 HP, Hydraulic 1 HP, Coolant pump 1/8 HP
Work bed height: 29.5" [750 mm]
Weight of machine: 5280 Lbs [2400 kgs]
Size of machine: 106.3" x 124" x 107"
Shipping size: 2690 x 1750 x 2110 mm

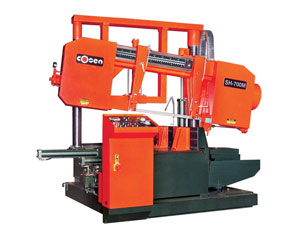

COSEN SH-700M
Double Column Hydraulic Swivel Head Fast Mitering Semi-automatic BandSaw

FEATURES:
• Rigid, oversized round columns precision ground to ensure smooth and consistent feed rate
• 3.5 degree blade cant for longer blade life (7.5 degree available)
• 45 degree backward swivel with automatic angle lock-in
• Heavy duty gearbox for smooth powerful cutting
• Heavy duty inverter blade drive system
• Carbide blade guides
• Two extra guide bearings supports the blade
• Automatic hydraulic blade tensioning device
• Integral coolant system
• Synchronized power driven blade brush
• Independent control station
• Infinitely variable blade speed control
• Precision feed pressure & feed rate dual valve
• "Last cut" or "keep on" selector switch
• Work height selector
• Extremely heavy-duty cast iron machines vises ensuring tight clamping
• 2 sets of full stroke cylinder vises
• Shadow light projection for precise length measurement
• Hydraulically powered lifting roller for easy material positioning
• Proximity switch for sensing blade slippage or breakage
• Electrical and hydraulic safety interlock
• Blade "clip" device for easy blade change
• Bi-metal saw blade
• Tool box, leveling pads, and an extra wire brush
• Operation & parts manual
Click to Request a Quote for the SH-700M


SPECIFICATIONS:
Round @ 0 degrees: 19.7" [500 mm]
Round @ -45 degrees: 13.8" [350 mm]
Round @ -60 degrees: 7.9" [200mm]
Rectangular (H x W) @ 0 degrees:
15.7" x 27.6" [400 x 700 mm]
Rectangular @ -45 degrees:
18.5" x 13.8" [470 x 350 mm]
Rectangular @ -60 degrees:
19.7" x 7.9" [500 x 200 mm]
Saw Blade Size:
214.5" x 1.6" x 0.050" [5450 x 41 x 1.3mm]
Blade Speeds (variable):
82-312 fpm [25-95 m/min]
Motor: Blade 7.5 HP, Hydraulic 1 HP, Coolant pump 1/4 HP
Work bed height: 27.5" [700 mm]
Weight of machine: 7480 Lbs [3400 kgs]
Size of machine: 69" x 113.5" x 89"
Shipping size: 3200 x 2260 x 2235 mm

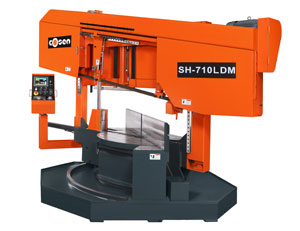

COSEN SH-710LDM
Double Column Hydraulic Swivel Head Fast Dual Mitering Semi-automatic BandSaw

FEATURES:
• This machine is a hydraulically controlled dual post bandsaw to make straight cuts with easy mitering up to plus or minus 60 degrees in both directions.
• More information is available only if you click to request a formal quotation.

Click to Request a Quote for the SH-710LDM


SPECIFICATIONS:

Rectangular (H x W) @ 0 degrees:
16.5" x 28" [420 x 710 mm]
Rectangular @ +/-45 degrees:
16.5" x 18" [420 x 460 mm]
Rectangular @ +/-60 degrees:
16.5" x 11.8" [420 x 300 mm]
Saw Blade Size:
257.5" x 1.6" x 0.050" [6540 x 41 x 1.3mm]
Blade Speeds (variable):
83-330 fpm [25-100 m/min]
Motor: Blade 7.5 HP, Hydraulic 1 HP, Coolant pump 1/4 HP
Work bed height: 26.4" [670 mm]
Weight of machine: 6380 Lbs [2900 kgs]
Size of machine: 128" x 126" x 76"

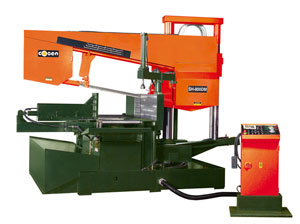

COSEN SH-800DM
Hydraulic Swivel Head Fast Dual Mitering Semi-automatic BandSaw

FEATURES:
• Precision ground, oversized round column design • 10 degree blade cant for longer blade life
• Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders
• Cross link connecting the two columns for enhanced structural strength
• 45 degree forward & 60 degree backward swivel with automatic angle lock-in
• Specially designed planetary drive for smooth and powerful cutting
• Heavy duty inverter blade drive system
• Easy-to-read LED speed indicator
• Hydraulically operated carbide blade guides
• Two addtional guide bearings for extra support of the blade
• Automatic hydraulic blade tensioning device
• Hydraulically actuated guide arm
• Integral coolant system
• Synchronized power driven blade brush
• Independent control station
• Precision feed pressure & feed rate dual valve system
• LED speed indicator
• "Last cut" or "keep on" selector switch
• Vise pressure detector
• Hydraulically powered material infeed lift roller
• Idle roller work table for material feeding
• Light projection for precise length measurement
• Full stroke double retracting vise
• Full stroke cylinder vises
• Proximity switch for sensing blade slippage or breakage
• Electrical and hydraulic safety interlock
• Blade "clip" device for easy blade change
• Bi-metal saw blade
• Tool box, leveling pads, and an extra wire brush
• Operation & parts manual
Click to Request a Quote for the SH-800DM


SPECIFICATIONS:
Round @ 0 degrees: 20" [500 mm]
Round @ +/-45 degrees: 17.7" [450 mm]
Round @ -60 degrees: 16" [400mm]
Rectangular (H x W) @ 0 degrees:
16" x 31" [400 x 800 mm]
Rectangular @ -45 degrees:
16" x 21" [400 x 550 mm]
Rectangular @ -60 degrees:
16" x 16" [400 x 400 mm]
Saw Blade Size:
260" x 2" x 0.050" [6600 x 54 x 1.3mm]
Blade Speeds (variable):
66-330 fpm [20-100 m/min]
Motor: Blade 7.5 HP, Hydraulic 3 HP, Coolant pump 1/2 HP
Work bed height: 42.7" [1085 mm]
Weight of machine: 9900 Lbs [4500 kgs]
Size of machine: 122.8" x 139" x 107"
Shipping size: 3655 x 2285 x 2515 mm

Click for the American Machine Tool Homepage

American Machine Tools Corp.
5864 Northwest Hwy
Chicago IL 60631 USA

Phone: 773-334-5000
Fax: 773-442-0314

Click to email us

Terms and Conditions

Privacy Clause

Frequently Asked Questions
Website by eMarketAmerica
Copyright © 2015
American Machine Tools Corp.

All rights reserved
Information on this website is subject to change without notice.
Offers from American Machine Tools Corporation include include Terms and Conditions shown on our website.
Liability is strictly limited to those warranties of fitness for purpose and safety as provided by the manufacturer.
Products and Logos in this website are trademarks or registered trademarks of their respective companies or mark holders.
