EDWARDS 25 TON IRONWORKER MACHINE:

Everything is still made in the USA on the little Edwards 25 Ton Junior Ironworker, so it is a nice little starter machine that is designed to fit the needs of a small fabrication shop that just wants to punch holes and a few other tasks. The 25 ton model includes a Punching Assembly, a Pedestal Die Table, and a universal open tooling Jaw on the right side designed to accept optional Tooling such as the Press Brake, Coper-Notcher, Pipe Notcher, V-Notcher, Rod Shear or even a 2nd Punching Assembly! If you feel this Ironworker Machine is not big enough please note that we also offer the Edwards 40 ton Ironworker model with built-in 10 inch wide flat bar shear and 3 x 3 angle iron shear and an optional Hydraulic Accessory Connector Panel option to allow the 40 Ton to power the Edwards 10 Ton Tube/Pipe Bender, Horizontal Press Brake, Roll Bender, 20 Ton, 40 ton, 60 ton or 110 ton hydraulic Shop Press. All the Edwards Ironworker machines 40 ton and larger come with at least 4 work stations, electric stroke control, OSHA compliant safety guarding, and UL approved controls. And dont forget to look at the nice list of metalworking options with photos shown below!
**********************************************************
Ask about our brand new 2016 model year Edwards 40 ton Ironworker being sold at cost! Call 1-773-334-5000.
Still in the factory plastic wrap with one year factory warranties! **********************************************************

Edwards 25 ton Punching Machine - front photo

FEATURES:
* 25 Tons of Power at 110 or 220 volts, 1 phase
* 25 Ton Punch Station on left side
* 25 Ton Tooling Station for options on right side
* Complete Punching System ? Punch Strippers
* Direct Drive Pump
* Coupling Wrench
* Fully Guarded
* Comfortable Operating Height
* Remote foot pedal operation
* Integral lifting lug for instant portability
* Hydraulic system fully charged - ready to operate
* Made in USA
PUNCHING CAPABILITIES:
Punching Capacity: 25 Tons
Throat: 5"
Standard Punch: 1" diameter hole thru 1/2" plate
Optional Oversize Punching Assembly: 1-9/16" diameter in 1/4" plate
FLAT BAR SHEARING:
1/4" x 6"
if optional Multi-Shear is purchased
ANGLE SHEARING:
Maximum Size: 2" x 2" x 1/4" if optional Multi-Shear is purchased
All ratings are based on A36 steel @ 65,000psi max tensile strength
GENERAL SPECIFICATIONS:
Throat: 5" Maximum Capacity: 1" diameter in 5/16" plate
Largest Standard Punch and Die: 1-1/16" Punch thru 1/4" plate
Open Height: 8"
Shut Height: 7"
Stroke: 1"
Cycle time: 10 seconds to shear 1/4" x 2" steel flat bar
Hydraulic pump size: 11 gpm - 2 stage @ 2750psi, 3 gallon tank
Hydraulic Cylinder: 1-3/4" cylinder
Machine Dimensions: 23" x 29" x 55 High
Machine weight: 1000 Lbs.
ELECTRIC MOTOR CHOICES (*IMPORTANT*):
Standard: 1 HP, 1 phase, 230 volts, 1750 RPM, 7 amps
or
Standard: 1 HP, 1 phase, 120 volts, 1750 RPM, 14 amps

ADVERTISED PRICES:
We are not permitted to show you our lowest price so call us or click to request a quote to get a better deal that includes FREE shipping and a FREE 4 Punch & Die Sets!
Edwards 25 ton @ 1 phase, 120 volts: $5899.
Edwards 25 ton @ 1 phase, 230 volts: $5899.
Click to Request Our Lowest Discount Price and info packet
*************************************

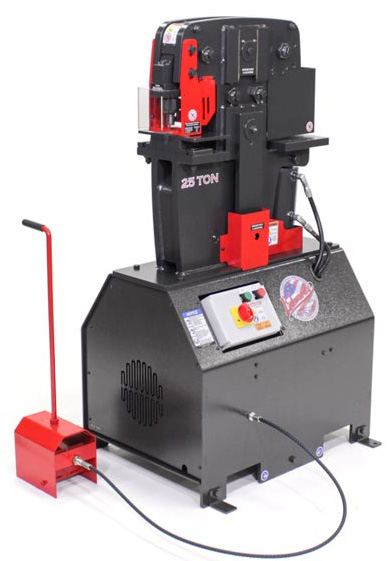

Edwards 25 ton Punching machine angled photo

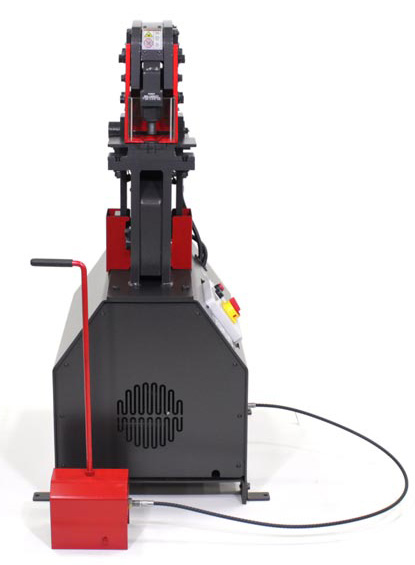

Edwards 25 Ton Punch - end photo

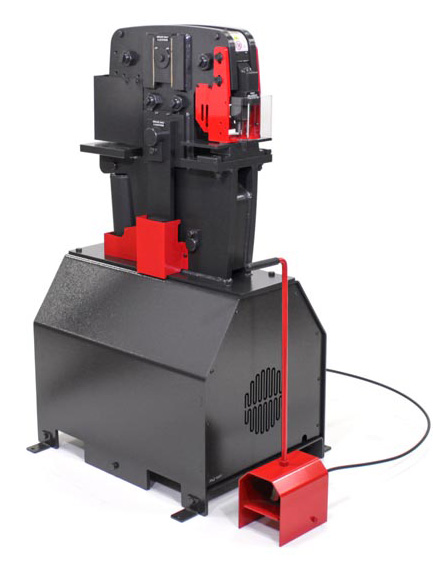

Edwards 25 ton Punching Machine - rear photo

*************************************************
OPTIONS AVAILABLE for the Edwards 25 ton Ironworker punching machine:

Tool Box of 8 round Punch & Die Sets

TOOL BOX OF 8 round PUNCH & DIE SETS: $332.

These hardened Punch & Die Sets are available in the following sizes: 1/8, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 15/32, 1/2, 17/32, 9/16, 19/32, 5/8, 21/32, 11/16, 23/32, 3/4, 25/32, 13/16, 27/32, 7/8, 29/32, 15/16, 31/32, 1", 1-1/32, 1-1/16.
We normally recommend the following clearance hole sizes for common size American bolts - 7/32 for #10 screws, 5/16 for a 1/4 inch screws, 7/16 for 3/8 bolts, 9/16 for 1/2 bolts, 11/16 for 5/8 bolts, 13/16 for 3/4 bolts and 1-1/16 for 1" bolts.
The die will have 1/32" clearance over the punch.

Round Punch & Die Set
Round Punch & Die
Oblong Punch & Die Set
Oblong Punch & Die

HARDENED PUNCH & DIE SETS

ROUND up to 1-1/16": $41.73
OVERSIZE ROUND up to 1-9/16": $83.46
OBLONG up to 1-1/16": $156.22
SQUARE up to 13/16": $143.38
HEX up to 25/32": $209.72

The die will have 1/32" clearance over the punch.
A notched coupling nut ($65) will be needed to use a 13/16 square punch.

Click for a List of our standard Hole Punch sizes

Square Punch & Die Set
Square Punch & Die
Hex Punch & Die Set
Hex Punch & Die
Coper-Notcher photo

COPER-NOTCHER: $1086.

Coper Notcher tool is used to bite off a piece of metal instead of using a vertical bandsaw or torch. This tool has an upper jaw the bites down into a lower jaw. The capacity to notch steel is 2" wide up to 3" long in steel up to 1/4" thick. It is capable of biting off a square shape, rectangle shape or V-shape. The rectangular notch is useful for coping back a flange on a piece of angle iron so it can fit up against another angle or channel at 90 degrees. You can V-shape notch by turning your part at 45 degrees to the machine. V-notching is useful when making a frame out of angle iron. You V notch where you plan to bend the angle to 90 degrees.
It easily mounts in the open jaw on the right side of the machine. Click to see a VIDEO.

The safety guard was removed for the photo, but you must use the safety guards to help prevent accidents.

Press Brake Tool for Edwards Ironworker Machine

PRESS BRAKE TOOL:
7 " $918.

Bend flat steel that is up to 1/4 inch thick! Sometimes 3/8" thick. This Press Brake Tool includes a standard wedge shaped top die and a V-shaped four-way bottom die that allows for 1/16", 1/8", 3/16", and 1/4" material to be bent to a 90 angle or smaller angle. The bottom brake die is held with brackets that easily bolt to the mounting table. Repeat the same bend angles by using the Ironworker electric stroke control to stop the top die at the desired depth for the angle you bend.
It easily mounts in the open jaw on the right side of the machine.

The safety guard was removed for the photo, but you must use the safety guards to help prevent accidents.

Back gauge image

PRESS BRAKE TOOL BACK GAUGE: $529.

How to make REPEAT BENDS? Use this Back Gauge to measure the bend line distance for your press brake tool along with using the electric stroke control that is included with your Edwards 55 ton Ironworker. Just bolt it on to the Edwards Ironworker Brake Tool. It has an easy to use hand crank to position it with your tape measure.

Pipe Notcher picture
Pipe Notcher Die set

PIPE NOTCHING TOOL:
Pipe Notcher Housing: $371. (needed)
1/2" Pipe Notching Die: $418.
3/4" Pipe Notching Die: $449.
1" Pipe Notching Die: $479.
1-1/4" Pipe Notching Die: $511.
1-1/2" Pipe Notching Die: $543.
2" Pipe Notching Die: $573
.

The Pipe Notcher saves the time of cutting and grinding to make a semi-circle saddle style 90 degree joint connection of one piece of pipe to another. Just stick the end of your pipe into the housing and step on the foot pedal, then rotate 180 degres and repeat. Total time to make a perfect notch is 8 seconds. Great for making railings and cattle fencing out of schedule 40 pipe. Schedule 80 size and Tubing size notchers are available on special order. To order you buy the Pipe Notcher Housing plus the Notching Die.
It easily mounts in the open jaw on the right side of the machine. Click to see a VIDEO.

The safety guard was removed for the photo, but you must use the safety guards to help prevent accidents.

Turret for holding 3 pipe notchers

TURRET FOR PIPE NOTCHERS: $883.

This turret holds up to 3 different size pipe notching dies and rotates so that you can quickly position the size you want for your next notch. It easily mounts in the open jaw on the right side of the machine.

Angle V Notcher

ANGLE V NOTCHER: $1162.

The Angle Notcher bites out a 92 V-notch out of the lower leg of angle iron. V-notcher works on angle iron up to 3" x 3" x 1/4" size. This is great for making steel frames out of angle iron that is to be bent at 90 degress. It easily mounts in the open jaw on the right side of the machine.

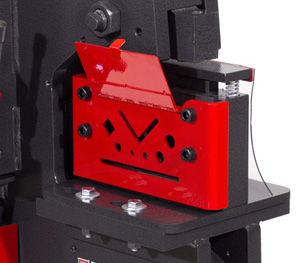

Edwards Rod Shear option

MULTI-SHEAR : $979.

This option will change your 25 ton punching machine into an Ironworker. The multi-shear tool quickly cuts round rods, squares, angle iron and flat bar. It cuts solid round sizes 1/4", 3/8", 1/2", 5/8", 3/4" rod, and 13/16" square. Also cuts flat bar up to 1/4" x 6" and angle up to 2" x 2" x 1/4". It easily mounts in the open jaw on the right side of the machine. Click to see a VIDEO.

Image of Back Gauge for Ironworker

BACK GAUGE, Manual Cut (shown): $247.
BACK GAUGE, Automatic Cut(not shown): $802.

The Back Gauge measures out 48 inches for repeat cutting of parts to length on the Angle Shear and Flat Bar Shear. On the back of the 55 ton Ironworker there is a threaded hole to screw in this Back Gauge.
The Automatic Cut version has a trigger that you push the metal against and that automatically cycles the machine to cut your metal without stepping on the foot pedal.

Extra large Hole Punching

OVERSIZE PUNCHING ASSEMBLY: $618.
(for holes up to 1-9/16" diameter)
EXTRA LARGE 241 PUNCH ASSEMBLY: $1330.
(for holes and hole patterns up to 4" diameter)

If you need to punch holes larger than 1-1/16 diameter, then you need either the Oversize Punching Assembly (1-9/16" capacity) or the Extra Large 241 Punching Assembly (up to 4" capacity). The Extra Large 241 Punching Assembly can also hold special multi-hole punches so you can punch unusual shapes or multiple holes at one time as long as they can fit within a 4" circle.

The safety guard was moved for the photo, but you must use the safety guards to help prevent accidents.

3/8" thick PUNCH GAUGING TABLE: $203.
1" thick PUNCH GAUGING TABLE: $680.

If you have repeat position hole punching to do then you need one of our Gauging Table Kits. It comes with a 12" x 16" table that bolts onto the standard or oversize Pedestal Die Table. The kit also includes an adjustable fence bar for front to back and an adjustable fence bar for left to right positioning. Each fence bar has handles that clamp down to the table slots to guide your metal parts into the same position for making repeat parts.

The safety guard was moved for the photo, but you must use the safety guards to prevent accidents.

Stripper Reducing Plate

STRIPPER REDUCING PLATE: $87.

The purpose is to minimize distortion when punching thinner metals, especially when using smaller punches. It mounts to your stripper bar with 2 screws and has a spring loaded pin to align it. It can be swung away when its not used.

URETHANE STRIPPER : $581.

This special stripper works differently than the less expensive Stripper Reducing Plate because it maintains constant pressure while punching which will minimize distortion of delicate metal parts, thin metal parts and soft copper buss bars. Click to see a VIDEO.

PROTRACTOR ANGLE GAUGE: $44.

Set any angle you want on this Protractor Angle Gauge when shearing flat steel or when punching slotted holes. The Protractor has notches every 15 and also at 22.5 but it is often used at 90. It works by fitting into the slot on the shear table, punch gauging table or up against the punch table. Its also reversible so people who are left handed will find it just as easy to use.
