Hydraulic
Press
|
|||||
|
|||||
Hydraulic Shop Press Machines - H frame & C frame
If you
need to press fit new bearings in or force old bearings out, you will
like the hydraulic power of a shop press. They are also used for straightening
or bending metal and can even power a die set. These machines come in
different types. Manual, with hand pump, has spring return. Pneumatic
using a air driven hydraulic pump is available in single acting (downward)
with spring return (upward) or double acting (air powered down and up).
Elecdraulic is available in single acting or double acting and works
similar to pneumatic but uses an electric motor to power the pump and
is more accurate than air driven. Scroll further down to see our Dake
and HMI C-frame type presses. At the bottom of this webpage we show
a Brake Press Tool that can be used with almost any hydraulic shop press.
Hydraulic presses use a pump to move hydraulic oil into the top of the cylinder to increase pressure, which moves the ram down. These machine can be purchased in different size capacities. These capacities are measured in tons. The pump can be either manually, electrically or air powered. Hydraulic presses can be used to press or pull bearings (pulling can only be done if press is double action), flatten material, bending material, punching holes, and some presses are for special uses such as pressing forklift tires on or off hubs. These procedures are done by placing the workpiece on the table of the press, aligning the ram with the location on the workpiece where the procedure needs to be done and placing the ram into motion (manually, electrically, or air) and the procedure is accomplished. There are different styles of hydraulic presses such as; H-Frame style which resembles the letter "H" in the way the frame is shaped, there are moveable table presses which make it easier to load and unload heavy workpieces, there are C-frame presses in which the frame resembles the shape of the letter "C", and some special designed ones, although the most common style is the H-Frame.
DAKE H-FRAME HYDRAULIC PRESS
|
| Standard
Features: • Hand Pump or Air or Electric • Rapid Ram Return • By-pass Hole • Adjustable Table with self locking hoist • Rapid Screw Traverse of Ram • Movable Workload (except 25 ton) • 2 Forged Steel V-Blocks & Table Plates • Flat Ram Nose (except 25 ton) • Pressure Gauge |
Options
Available: • Air driven pump instead of hand pump • Electric pump instead of hand pump • Super-sensitive double-acting Ram Control • Slide-out Table for overhead loading • Stroke Indicator |
|
Model
|
Ram
Travel |
Max.
Height |
Min.
Height |
Max.
Width |
Horizontal
Head Travel |
| 25
TON Click to Request this Quote |
10"
|
36"
|
1"
|
33.5"
|
13.5
|
| 50
TON Click to Request this Quote |
10"
|
40"
|
5"
|
32.75"
|
13.25"
|
| 75
TON Click to Request this Quote |
10"
|
36"
|
6"
|
44"
|
24.62"
|
| 150
TON Click to Request this Quote |
16"
|
30"
|
10"
|
48"
|
21.87"
|
| 200
TON (no hand pump) Click to Request this Quote |
16"
|
30"
|
6"
|
48"
|
21"
|
DAKE HYDRAULIC DURA-PRESS
• Simple
single acting cylinder design with 5 part oil seals for smooth
operation and a tight seal.
• Welded heavy steel plate frame for greater rigidity.
• Efficient hand pump, conveniently located reduces operator fatigue.
• Each full stroke of the pump advances the ram 1/2".
• Preset factory sealed relief valve to prevent excessive pressure.
• Machine includes two forged steel table plates..
• Pressure gauge included.
|
Model
|
Ram
Travel |
Max.
Ram to Table |
Min.
Ram to Table |
Max.
Width |
| 10
TON HAND OPERATED Click to Request this Quote |
6"
|
36"
|
7"
|
20"
|
| 20
TON HAND OPERATED Click to Request this Quote |
4"
|
34.5"
|
4.5"
|
20"
|
same as above plus also includes:
• 1 Hp, 110 volt, single phase to plug in anywhere.
• Lever control arm advance.
• Double acting cylinder allows easy ram positioning.
• One hand ram positioning with 4-way hydraulic control.
|
Model
|
Ram
Travel |
Max.
Ram to Table |
Min.
Ram to Table |
Max.
Width |
| 10
TON ELECTRIC Click to Request this Quote |
10"
|
40"
|
4"
|
20"
|
|
25 TON ELECTRIC Click to Request this Quote |
10"
|
44"
|
8"
|
28"
|
DAKE 50 Ton HYDRAULIC DURA-PRESS
• Regular
Price: Only $6195. Made in USA.
Click
to Request a formal Quote for this machine
• Motor is 2 hp, 110 volts to plug in anywhere
• Lever control ram advance for easy use.
• Double acting cylinder for easy positioning of the ram.
• Sturdy, welded channel iron frame weighes over 1000 Lbs.
• Quiet, low pressure hydraulic systems for smooth pressing.
• One hand ram positioning with 4-way valve hydraulic control.
• Safety relief valve
• Joystick operation
• Two combination table plate/V-blocks
• Pressure gauge.
• Width between uprights: 44 inches [112cm]
• Width between table channels: 8.25 [21cm]
• Minimum ram to table: 0
• Maximum ram to table: 41 3/4 [106cm]
• Ram speed: 11 inches per minute
• Ram travel: 16 inches [40cm] C
• Machine weight: 1550 Lbs./ Size: 55 wide x 36 deep x 88"
high

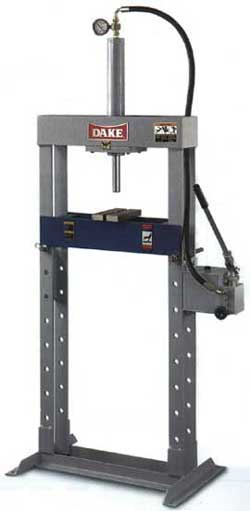

DAKE HYDRAULIC DURA-PRESS
• Double
acting cylinder design with 5 part oil seals for smooth operation
and a tight seal.
• Ram has lifting eyes to move table with chains.
• 2 Hp submerged motor drives 2 centrifugal pumps on 40 & 70 Ton
• 3 Hp submerged motor drives 3centrifugal pumps on 100 Ton
• 220 or 440 Volts, 3 phase but electrical controls are low voltage.
• Ram rapid advance automatically shifts to slow after touching
work.
• Machine has a pressure gauge and 2 forged steel plates.
|
Model
|
Ram
Travel |
Max.
Ram to Table |
Min.
Ram to Table |
Max.
Width |
| 40
TON Click to Request this Quote |
19"
|
32"
|
7"
|
35"
|
|
70 TON Click to Request this Quote |
19"
|
32"
|
7.25"
|
35"
|
| 100
TON Click to Request this Quote |
19"
|
35"
|
7.87"
|
41"
|
| 150
TON Click to Request this Quote |
19"
|
35"
|
14"
|
59"
|
| 200
TON Click to Request this Quote |
19"
|
35"
|
9"
|
59"
|

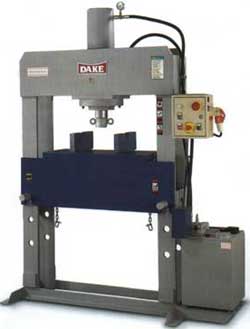

HYDRAULIC MOVABLE TABLE PRESS
• Moveable
Table allows overhead loading of heavy workpieces.
• Adjustable Workhead Height provides maximum daylight
space for oversized work.
• Heavy-Duty Hoist easily raises and lowers workhead.
• Toggle Clamps lock table securely in place.
• Options available: Air driven hydraulics, electrically
driven hydraulics, Table Plates, V-Blocks
|
Model
|
Ram
Travel |
Max.
Ram to Table |
Min.
Ram to Table |
Max.
Width |
| Dake
25 TON Click to Request this Quote |
10"
|
37"
|
7"
|
32.75"
|
|
Dake 50 TON Click to Request this Quote |
10"
|
40.87"
|
10.87
|
32.75"
|
| Dake
75 TON Click to Request this Quote |
10"
|
41.75"
|
11.75
|
44"
|
| Dake
150 TON Click to Request this Quote |
16"
|
64.25"
|
14.25"
|
48"
|
• Made in USA
EDWARDS 40 Ton HYDRAULIC PRESS
•
Made in USA
• Optional Press Brake Tooling is 32 inch long, as seen
in photo can bend 3/16 x 32", 1/4 x 24", 3/8 x 6"
• Heavy duty all steel construction
• Rolling cylinder for maximum versatility.
• Easy to use hand controls
• Quick disconnect hoses
• Cylinder with 6 inch Bore, 4 inch Ram
• Stroke: 12 1/4"
Only $3995
as an accessory to an Edwards Ironworker machine.
220 Volts 3 phase Hydraulic Power Unit costs $1995. extra
Total cost with hydraulic power unit: $5990.
440 Volts 3 phase Hydraulic Power Unit costs $2095. extra
Total cost with hydraulic power unit: $6090.
220 Volts 1 phase Hydraulic Power Unit costs $2295. extra
Total cost with hydraulic power unit: $6290.
Click
to Request our discounted Prices
Optional
Press Brake Tooling:
18 inches long $1495. extra
24 inches long $1895. extra
32 inches long $2595. extra
JET HYDRAULIC SHOP PRESS HP-15A
• Capacity:
15 Tons
• Easy-to-use, hand-operated hydraulic pump
• Pressure gauge for direct pressure readings
• Tables raise and lower easily with use of hand crank
• Side frames are open for inserting long material
• Fast setup ram extension screw
• Ram moves laterally for added versatility
• Two bed plates and pump handles
• Straightness testing support uses centers or v-blocks
• 2 year warranty
Click
to Request a Quote for the Jet HP-15A
Open Height:
17.5 inches
Lateral Movement: 10-3/16"
Net Weight: 435 Lbs
Overall Dimensions: 33-7/8 x 29-1/2 x 65-1/2 inches
Piston Stroke: 4-1/2"
Ram Diameter: 2-1/2"
Screw Stroke: 3-1/8"
Vertical Table Travel: 22-3/16"
Width: 35.5"
Work Table Size (in.) 24-3/4 x 7-1/2 inches
JET HYDRAULIC SHOP PRESS HP-35A
• Capacity:
35 Tons
• Easy-to-use, hand-operated hydraulic pump
• Pressure gauge for direct pressure readings
• Tables raise and lower easily with use of hand crank
• Side frames are open for inserting long material
• Fast setup ram extension screw
• Ram moves laterally for added versatility
• Two bed plates and pump handles
• Straightness testing support uses centers or v-blocks
• 2 year warranty
Click to Request a Quote for the Jet HP-35A
Open Height:
19.5 inches
Lateral Movement: 15"
Net Weight: 783 Lbs
Overall Dimensions: 42-1/2 x 33-1/2 x 68 inches
Piston Stroke: 4-3/4"
Ram Diameter: 3"
Screw Stroke: 4"
Vertical Table Travel: 23-5/8"
Width: 71"
Work Table Size: 31 x 10-3/8 inches
H.M.I. PJP C-Frame Hydraulic Press
- made in USA
Choose from 42 Ton and 58 Ton sizes
11" stroke
14" throat
18" throat height
38" x 16" press platen
Motor: 10 HP
Click
to Request a Quote for the PJP 42 Ton
Click
to Request a Quote for the PJP 58 Ton
FEATURES:
• Large open throat area
• Extra large press bed to accommodate a wide variety of tooling
• Easily switched over from die sets to single end punching
• Stroke can be stopped and reversed at any point in its cycle
• Full tonnage throughout stroke
• Reservoir mounted between housings for space savings
• Reservoir equipped with sight gauge and clean out ports
• Hydraulics have a return intank filter
• 18 month warranty.
OPTIONS:
Ram diameter up to 8". Dual palm buttons. Jog buttons for UP &
DOWN. Pressure reversal. Tonnage control. Punch package. Safety
Light Curtains. Keyed Switches.

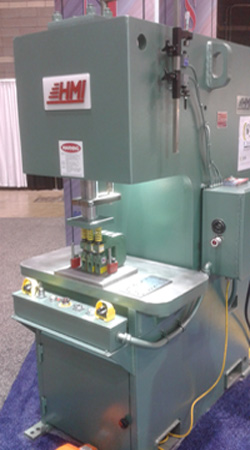

HMI HYDRAULIC SEP C-FRAME PRESS
Made in USA. Motor available in 208 volts, 230 volts or 460 volts.
| TONNAGE CAPACITY |
35 ton
|
40 ton
|
60 ton
|
80 ton
|
100 ton
|
120 ton
150 ton |
| Click to Request this Quote | Click to Request this Quote | Click to Request this Quote | Click to Request this Quote | Click to Request this Quote | Click to Request this Quote | |
| PRESS PLATEN L-R, F-B |
20" x 10.5"
|
36" x 14"
|
36" x 14"
|
36" x 14"
|
36" x 14"
|
36" x 14"
|
| OPEN HEIGHT |
10"
|
14"
|
14"
|
14"
|
14"
|
14"
|
| SHUT HEIGHT |
6"
|
6"
|
6"
|
6"
|
6"
|
6"
|
| STROKE |
4"
|
8"
|
8"
|
8"
|
8"
|
8"
|
| THROAT |
7"
|
10"
|
10"
|
10"
|
10"
|
10"
|
| MOTOR |
15 HP
|
15 HP
|
15 HP
|
15 HP
|
15 HP
|
15 HP
20 HP |
| Gear Pump |
8 gpm
|
8 gpm
|
9 gpm
|
9 gpm
|
9 gpm
|
11 gpm
|
| Weight Lbs |
1250
|
2150
|
3200
|
3500
|
4200
|
5560
7200 |
OPTIONS:
Ram diameter up to 8" available.
Dual palm buttons.
Jog buttons for UP & DOWN.
Pressure reversal.
Tonnage control.
Punch package.
Light Curtains.
Keyed Switches.

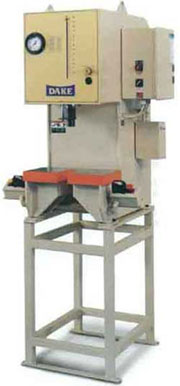

DAKE C-FRAME HYDRAULIC PRESS
Standard
Equipment:
• Adjustable Return Stroke
• Remote Pressure Adjustment
• Light Sensitive Thumb Pads
• Run-Jog Selector
• Oversized Heavy duty Hydraulic Cylinders
• Bolster Plate included
• Choose 208, 230, 460 or 575 volts, 3 phase.
Optional Equipment:
• Custom Bolster Plates
• Threaded or flanged Nose Piece
• Pedestals
• Air/oil Heat Exchanger
• Pressure and Distance Reversal Controls
• Variable Speed Control
• External Dwell timer
• Piece/Cycle Counter
|
Model
|
Ram
Travel |
Max.
Height |
Throat
Depth |
Throat
Depth |
PLC?
|
| 4
TON Click
to Request this Quote |
12
|
12.5"
|
7.5"
|
7.5"
|
No
|
| 8
TON Click
to Request this Quote |
12
|
12.5"
|
7.5"
|
7.5"
|
No
|
| 12
TON Click
to Request this Quote |
12
|
14.5"
|
10.5"
|
10.5"
|
No
|
Laboratory
Compression Heat Press
with independently
heated electric platens, precise temperature control, rapid advance
hydraulics and accurate pressure adjustment. Designed to hold
pressure for long periods. Use this machine for compression molding,
laminating, testing, etc.
Click
to Request a Quote on a 25 ton
Click
to Request a Quote on a 50 ton
Click
to Request a Quote on a 75ton
Turn your hydraulic press into a Brake Press !
Optional Press Brake Tooling as seen in photo is 32 inch long, can bend 3/16 x 32", 1/4 x 24", 3/8 x 6" wide
12 inches
long $1295. extra
18 inches long $1495. extra
24 inches long $1895. extra
32 inches long $2595. extra
| Turn your hydraulic shop press into an iron working machine with optional tooling: | ||
 Pipe Notcher Notches pipe with a semi-circular cut to allow one pipe to fit 90° against another for railings. Then just a small amount of welding makes for a beautiful connection. Sizes from 1/2 to 2" schedule 40 pipe. |
Rod-Shear |
Vee-Notcher |
Click for Edwards Hydraulic Ironworker Machines Homepage
Click for American Machine Tools Company Homepage
5864 Northwest Hwy
Chicago IL 60631 USA
Phone: 773-334-5000
Fax: 773-442-0314
Click to email us
Copyright © 2001-2012
American Machine Tools Corp.
All rights reserved
Products and Logos in this website are trademarks or registered trademarks of their respective companies or mark holders.
Offers from American Machine Tools Corporation include include Terms and Conditions shown on our website.
Liability is strictly limited to those warranties of fitness for purpose and safety as provided by the manufacturer of the machinery sold.
