DURANT EQUIPMENT FOR PUNCH PRESS COIL STRIP FEEDING:

UnCoiler, DeCoiler, Stock Reels, Straightener, Servo Feed, sheet metal Stock Oiler and Cut To Length Machines - made in USA.

Durant Pallet UnCoilers from $3900.

Click Model to Request a Quote
Weight
Capacity
(Lbs.)
Max
Turntable
RPM
Turntable
Diameter
Motor
H.P.
1012-30
1000
0-12
30"
1/2
1025-30
1000
0-25
30"
1/2
1050-30
1000
0-50
30"
1/2
3512-42
3500
0-12
42"
1/2
3525-42
3500
0-25
42"
1/2
3550-42
3500
0-50
42"
1
5012-42
5000
0-12
42"
1
5025-42
5000
0-25
42"
1
5050-42
5000
0-50
42"
1
5012-52
5000
0-12
52"
1
5025-52
5000
0-25
52"
1
5050-52
5000
0-50
52"
1
7512-52
7500
0-12
52"
2
7525-52
7500
0-25
52"
2
7512-60
7500
0-12
60"
2
7525-60
7500
0-25
60"
2
10M1260
10,000
0-12
60"
3
10M2560
10,000
0-25
60"
3



FEATURES:
3 year warranty
No dangerous turntable pinchpoints
Heavy duty turntable and base
Reverse direction with one switch
No drive wheels or casters to keep clean
Easy loading of entire pallets of coil stock
Requires no stock loop. Can place within 2 feet of press

OPTIONS:
Coil lock
Rubber anti-slip turntable covering
Stock straightener
Regenerative drive
Faster turntable speed to 70 RPM
Wider material stock drum to 24"
Urethane drum

Stock Straightener - unmotorized

Widths: 6" to 36"
Thickness Ranges: .020 - .145" to .025 - .210"

Each machine has 2 drive rolls and either 5 or 7 straightening rolls.

Call 773-334-5000 to discuss a machine to fit your requirements.

Photo of Stock Straightener

Motorized Stock Straighteners

Click Model to Request a Quote
Max
Width
Qty
of
Drive
Rolls
Qty
of
Straight
Rolls
Roll
Dia
Motor
H.P.
Metal
Thickness
Range
3.125"
2
5
1"
3/4
.008 -.100
3.125"
2
7
1"
3/4
.008 -.100
3.125"
4
14
1"
3/4
.008 -.100
3.125"
6
21
1"
3/4
.008 -.100
6"
2
5
1"
3/4
.008 -.100
6"
2
7
1"
3/4
.008 -.100
6"
4
14
1"
3/4
.008 -.100
6"
6
21
1"
3/4
.008 -.100
12"
2
7
1.25"
1
.008 -.065
12"
4
14
1.25"
1
.008 -.065
12"
6
21
1.25"
1
.008 -.065

All models include entrance drive rolls, straightening rolls, and variable speed DC drive. These individually adjustable rolls are precision ground and heat treated for long term service. Entrance and exit adjustable roller assembly is standard.

Heavy Duty Stock Straightener

SD AC Vari Drive
Click Model to Request a Quote Max
Width
Metal
Thickness
Range
Roll
Dia
Motor
H.P.
SD-12 12" .040 - .250" 4" 5
SD-18 18" .040 - .210" 4" 5
SD-24 24" .040 - .180" 4" 5
SD-30 30" .040 - .160" 4" 7.5
SD-36 36" .040 - .150" 4" 7.5
SD-48 48" .040 - .130" 4" 7.5
SD-60 60" .040 - .115" 4" 10
VS-SD Variable Speed
VS-SD-12 12" .040 - .250" 4" 5
VS-SD-18 18" .040 - .210" 4" 5
VS-SD-24 24" .040 - .180" 4" 5
VS-SD-30 30" .040 - .160" 4" 7.5
VS-SD-36 36" .040 - .150" 4" 7.5
VS-SD-48 48" .040 - .130" 4" 7.5
VS-SD-60 60" .040 - .115" 4" 10

The SD motorized straighteners are available up to 60" wide in AC motorized and AC variable speed (30 - 90 FPM). Motors are 220 volts or 440 volts, 3 phase. Each machine has one set of entrance drive rolls, one set of exit rolls and seven straightening rolls. Standard equipment includes loop controller, inclined head, dial indicators, black oxide finish, easy access maintenance panel and variable speed models have an antenna control.

Picture of Heavy Duty Stock Straightener

Uncoiler-Straightener Combo

Uses Air and 3/4 H.P. 90 VoltDC electrics. Great for saving floor space in the small shop. These Durant machines have 7 straightener rolls, 2 drive rolls, a variable speed DC drive and proportional loop control. 0 - 90 FPM. The electric drive uses a smooth accurate loop of metal to prevent coil marking.

Options:
Antenna loop control
No touch loop control

Click Model
to Request
a Quote
Max
Width
Metal
Thickness
Range
Max
Coil
O.D.
Max
Coil
Wgt
DSC1/MSC27
6"
.008-.100
36"
600 Lbs
DSC2/MSC27
6"
.008-.100
48"
1200 Lbs
DSC2/MSC57
12"
.008-.065
48"
1200 Lbs

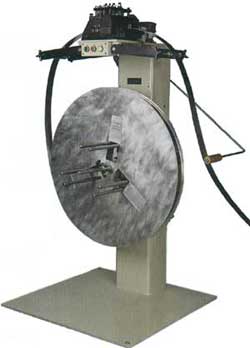

Uncoiler-Straightener Combo

LP Series Servo Roll Feed

All models include mechanical pilot release. NO air line connections, NO oil lubricators, NO "O" rings to replace, NO feed clamp noise, simple unlimited feed length adjustment to 999.99".
Standard Features:
Precision Machined construction, solid steel.
Black Oxide finished.
Mechanical Pilot Release.
Zero maintenance sealed bearings.
Cluster gears on top & bottom rolls for zero backlash regardless of material thickness.
Zero maintenance low inertia pulley mounted with trantorque keyless bushing.
Zero maintenance Kevlar belt which eliminates lubrication & wear.
Brushless servo motor.
Adjustable roller stock guides.
Positive pressure die springs on top roll.
Operator Control: Power On/Off selector switch, Emergency Stop push/pull button, remote forward/reverse jog pendent.
Operator interface keypad and display.
Electronic Control is wired to JIC and NEC standards.

Click Model #
to Request a Quote
Max.
Material
Width
Max. (mild steel) Thickness
Feed Roll Diameter
LP-4
4"
.040"
1.50"
LP-8
8"
.040"
1.50"

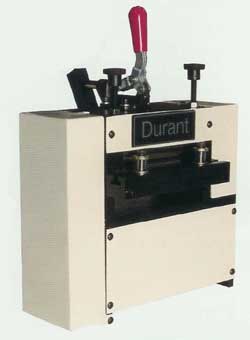

Photo of Durant LP Series Servo Roll Feed

Consider replacing your high maintenance air feed with the affordable, no maintenance LP Series Servo Roll Feed.
Quiet operation, quick installation, and low price. Input is 115 Volts.
(3) year warranty on all mechanical parts.

Also available in double push-pull design.

MP-VP Series Servo Roll Feed

Durant's MP-VP Series Servo Roll Feeds are heavy duty, rugged machines for high speed, demanding applications up to .125" thick steel feeding requirements. All frames are solid steel construction, dowel-pinned and screwed with precision components. NO inexpensive castings that will fatigue and crack. The #1 rated feed body, manufactured by Durant to the most rigid standards with The Allen Bradley Electronics Package, gives you, our customer, a trouble-free production investment.
Input is 230 Volts, 1 phase.
Max feed length is 999.99
Roll diameters are 2".
Optional pull through stock straightener.

Click Model #
to Request a Quote
Max.
Width
Max. (mild steel) Thickness
Motor Amps
MP-3
3"
.062
10
MP-6
6"
.062
10
MP-6-DS
2 Strips
2" Each
.062
10
MP-12-DS
2 Strips
2" Each
.062
10
MP-12
12"
.062
10
MP-18
18"
.062
10
MP-24
24"
.062
10
VP-3
3"
.125
20
VP-6
6"
.125
20
VP-12
12"
.125
20
VP-18
18"
.090
20
VP-24
24"
.090
20
VP-30
30"
.090
20
VP-36
36"
.090
20

Photo of Durant MP-VP Series Servo Roll Feed

Black Oxide finished.
Mechanical Pilot Release.
Matte Chrome finished rolls.
Zero maintenance sealed bearings.
Cluster gears on top & bottom rolls for zero backlash for each material thickness.
Zero maintenance low inertia pulley with keyless bushing.
Zero maintenance Kevlar belt eliminates lubrication & wear.
Brushless servo motor.
Adjustable roller stock guides.
Positive pressure die springs on upper roll.
Casade entry rolls.
Operator control: Power On/Off selector switch, Emergency Stop push-pull button, Index push button, Auto/Manual/Jog to Length selector switch & remote forward / reverse jog station.
Operator interface keypad and display.
Electronic Control is wired to JIC and NEC standards. NEMA cabinet.

FP Series Servo Roll Feed

Durant's FP series Servo Roll Feeds are heavy duty machines for high speed, demanding applications feeding steel up to .210" thick. All frames are solid steel construction, dowel-pinned and screwed with precision components. NO inexpensive castings that will fatigue and crack. The #1 rated feed body, manufactured by Durant to the most rigid standards with The Allen Bradley Electronics Package, gives you, our customer, a trouble-free production investment.
Black Oxide finished.
Mechanical Pilot Release.
Matte Chrome finished rolls.
Zero maintenance sealed bearings.
Cluster gears on top & bottom rolls for zero backlash for each material thickness.
Zero maintenance low inertia pulley with keyless bushing.
Zero maintenance Kevlar belt eliminates lubrication & wear.
Brushless servo motor.
Adjustable roller stock guides.
Positive pressure die springs on upper roll.
Casade entry rolls.
Operator control: Power On/Off selector switch, Emergency Stop push-pull button, Index push button, Auto/Manual/Jog to Length selector switch & remote forward / reverse jog station.
Operator interface keypad and display.
Electronic Control is wired to JIC and NEC standards. NEMA cabinet.

Click Model #
to Request a Quote
Max.
Width
Max. (mild steel) Thickness
FP-3
3"
.210"
FP-6
6"
.181"
FP-12
12"
.156"
FP-18
18"
.125"
FP-24
24"
.125"
FP-30
30"
.090"
FP-36
36"
.090"

FP-6

FP-24

Options:
Air pilot release with Open / Close / Automatic selector switch on Electronic control
Adjustable mounting bracket
Air operated roll hold down tension
Urethane rolls
Knurled rolls
Straightener

Heavy Duty Electronic Servo Feeds

Durant's HP series Servo Roll Feeds are extra heavy duty machines for high speed, demanding applications feeding steel up to .250" thick. All frames are solid steel construction, dowel-pinned and screwed with precision components. NO inexpensive castings that will fatigue and crack. The #1 rated feed body, manufactured by Durant to the most rigid standards with The Allen Bradley Electronics Package, gives you, our customer, a trouble-free production investment.
Input is 220 Volts, 1 phase.
Max feed length is 999.99"
Roll diameters are 3.50".

Click Model #
to Request a Quote
Max.
Width
Max. (mild steel) Thickness
HP-6
6"
.250"
HP-12
12"
.210"
HP-18
18"
.187"
HP-24
24"
.156"
HP-30
30"
.125"
HP-36
36"
.090"
HP-48
48"
.065"
HP-60
60"
.040"

Cluster gears on top & bottom rolls for zero backlash regardless of material thickness.
Zero maintenance low inertia pulley mounted with trantorque keyless bushing.

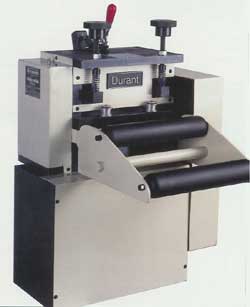

Picture of Feed Pro Electronic Servo Feeds

Precision Machined construction.
Black Oxide finished.
Mechanical Pilot Release.
Matte Chrome finished rolls.
Zero maintenance sealed bearings.
Zero maintenance Kevlar belt which eliminates lubrication & wear.
Brushless servo motor.
Adjustable roller stock guides.
Casade entry rolls.
Positive pressure die springs on upper roll.

Electronic Servo Feed
with Pull Thru Straightener

Widths: 3" to 60"
Metal Thickness: .040 to .115"

Optional Air Pilot Release or Mechanical Pilot Release.

Call 773-334-5000 to discuss a machine to fit your requirements.

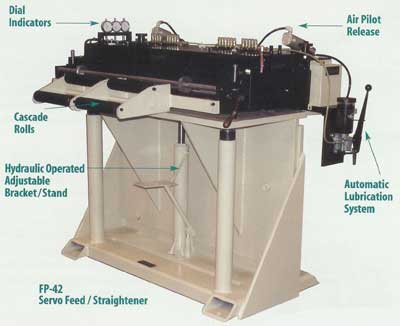

Picture of Electronic Servo Feed with Straightener

Electronic Servo Feed with Pull Thru Straightener

Picture of Durant Electronic Servo Feed with Straightener

Click Model #
to Request a Quote
Max.
Width
Max. (mild steel) Thickness
FP-3/SS
3"
.210"
FP-6/SS
6"
.181"
FP-12/SS
12"
.156"
FP-18/SS
18"
.125"
FP-24/SS
24"
.125"
FP-30/SS
30"
.090"
FP-36/SS
36"
.090"

Installation is a snap with a Durant servo feed - stock straightener combo. The MP and VP Series includes an adjustable mounting bracket as standard. Only four bolts are necessary for quick easy installation. The FP and HP Series allows for the heavy duty adjustable mounting bracket as an optional item. We recommend this item to make your installation and operation a smooth, trouble-free experience. Every model is engineered and machined from the latest CNC Technology and black oxide finished to give out customers the premier Electronic Servo Feed.

Operator control: Power On/Off selector switch, Emergency Stop push-pull button, Index push button, Auto/Manual/Jog to Length selector switch & remote forward / reverse jog station.
Operator interface keypad and display.
Electronic Control is wired to JIC and NEC standards.

Options:
Air Pilot Release
Mechanical Pilot Release

Adjustable Core Stock Reel / Rewind Reel

Fixed speed motors. 1/8" thick heavy duty coil discs on DMSC larger models. Reels are available in 35" and 48" outside plate diameters. If you do not want to deal with keeper arms, consider a Durant motorized stock reel. Motors are 1/4 HP, 110 Volts.
Options: Rewind, 4" I.D. Coils.

Click Model #
to Request a Quote
Max Width
Max O.D.
Core Dia
Weight
Capacity
D50MCD24
6"
24"
6 - 24"
50 Lbs.
D100MCD35
6"
35"
6 - 24"
100 Lbs.
D250MCD35
6"
35"
6 - 24"
250Lbs.
DMSC0CD48
8"
48"
6 - 24"
400 Lbs.
DMSC1CD48
10"
48"
6 - 24"
600 Lbs.
DMSC2CD48
13"
48"
8 - 24"
1200 Lbs.
DMSC3CD48
18"
48"
8 - 24"
600 Lbs.

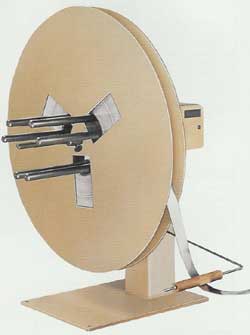

Photo of Durant motorized core stock reel with coil disc.

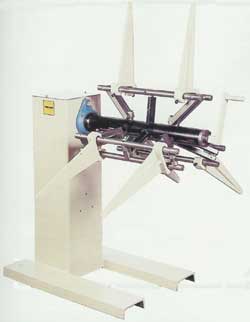

Adjustable Core Stock Reel / Rewind Reel

Click Model #
to Request a Quote
Motorized? Max Width Weight
Capacity
XL-1812-U No 12" 1800 Lbs.
XL-1816-U No 16" 1800 Lbs.
XL-1824-U No 24" 1800 Lbs.
VS-XL-1812-M Yes 12" 1800 Lbs.
VS-XL-1816-M Yes 16" 1800 Lbs.
VS-XL-1824-M Yes 24" 1800 Lbs.

The motorized VS-MD models below have the same features as the VS-XL models above except they also have a gear reducer to give 19 RPM spindle speed to feed at 72 FPM.

Click Model #
to Request a Quote
Motorized? Max Width Weight
Capacity
MD-2012-U No 12" 2000 Lbs.
MD-2016-U No 16" 2000 Lbs.
MD-2024-U No 24" 2000 Lbs.
MD-2030-U No 30" 2000 Lbs.
VS-MD-2012-M Yes 12" 2000 Lbs.
VS-MD-2016-M Yes 16" 2000 Lbs.
VS-MD-2024-M Yes 24" 2000 Lbs.
VS-MD-2030-M Yes 30" 2000 Lbs.

Constructed of heavy walled steel tubing and equiped with six rugged coil arms which easily adjust on heavy rods.
Max O.D. is 54", I.D. range is 15 - 20".

Unmotorized reels include a drag brake to eliminate material over travel.
Motorized machines are 3/4 HP, 220 or 440 Volts, 3 phase and have a material loop control.

Photo of Durant Adjustable Core Stock Reel

Heavy Duty UnCoiler

Available in powered (with variable speed drive) and non-powered (with adjustable air brake). Wedge type arbor expansion insures smooth and easy loading. Manual expansion is standard on machines smaller than 15,000 Lbs capacity. Hydraulic expansion optional.
On 15,000 Lbs capacity machines hydraulic expansion is standard. Optional hydraulic hold down arm available.
All Durant HD uncoilers have a max O.D. of 60".

MOTORIZED MODELS ARE SHOWN BELOW

Click Model #
to Request a Quote
Max Width
I.D.
HP
Weight
Capacity
Lbs.
HD624-M
24"
15.5-20"
3
6000
HD630-M
30"
15.5-20"
3
6000
HD636-M
36"
15.5-20"
3
6000
HD648-M
48"
15.5-20"
3
6000
HD824-M
24"
15.5-20"
5
8000
HD830-M
30"
15.5-20"
5
8000
HD836-M
36"
15.5-20"
5
8000
HD848-M
48"
15.5-20"
5
8000
HD860-M
60"
15.5-20"
5
8000
HD1024-M
24"
15.5-20"
5
10,000
HD1030-M
30"
15.5-20"
5
10,000
HD1036-M
36"
15.5-20"
5
10,000
HD1048-M
48"
15.5-20"
5
10,000
HD1060-M
60"
15.5-20"
5
10,000
HD1224-M
24"
18 - 23"
5
12,000
HD1230-M
30"
18 - 23"
5
12,000
HD1236-M
36"
18 - 23"
5
12,000
HD1248-M
48"
18 - 23"
5
12,000
HD1260-M
60"
18 - 23"
5
12,000
HD1524-M
24"
18 - 23"
5
15,000
HD1530-M
30"
18 - 23"
5
15,000
HD1536-M
36"
18 - 23"
5
15,000
HD1548-M
48"
18 - 23"
5
15,000
HD1560-M
60"
18 - 23"
5
15,000

Durant Heavy Duty Uncoiler

UNMOTORIZED MODELS ARE BELOW

Click
Model #
to Request a Quote
Max Width
I.D.
Weight
Capacity
Lbs.
HD624-U
24"
15.5-20"
6000
HD630-U
30"
15.5-20"
6000
HD636-U
36"
15.5-20"
6000
HD648-U
48"
15.5-20"
6000
HD824-U
24"
15.5-20"
8000
HD830-U
30"
15.5-20"
8000
HD836-U
36"
15.5-20"
8000
HD848-U
48"
15.5-20"
8000
HD860-U
60"
15.5-20"
8000
HD1024-U
24"
15.5-20"
10,000
HD1030-U
30"
15.5-20"
10,000
HD1036-U
36"
15.5-20"
10,000
HD1048-U
48"
15.5-20"
10,000
HD1060-U
60"
15.5-20"
10,000
HD1224-U
24"
18 - 23"
12,000
HD1230-U
30"
18 - 23"
12,000
HD1236-U
36"
18 - 23"
12,000
HD1248-U
48"
18 - 23"
12,000
HD1260-U
60"
18 - 23"
12,000
HD1524-U
24"
18 - 23"
15,000
HD1530-U
30"
18 - 23"
15,000
HD1536-U
36"
18 - 23"
15,000
HD1548-U
48"
18 - 23"
15,000
HD1560-U
60"
18 - 23"
15,000

Double Stock Reel UnCoilers

Increase your factory productivity! Consider double stock reels with fixed spindle shafts for material on spools or adjustable expanding spindles for bulk coils. All models of Durant stock reels are available in double spindle version. When one side of reel is operating the other side can be loaded. A foot release keeps the reel in position. It can be turned 180 degrees when fully loaded using the foot pedal. Antenna loop control is standard equipment. Many models are available with coiler keeper arms or coil discs. Coil discs are recommended for thin delicate materials.
These machines are manufactured as unmotorized "pull-off" type with brake or motorized uncoilers up to 3 horsepower. Choose either solid core or adjustable expanding core. 3 year warranty.
Options: Solid Core Main Shaft with Coil Disc., Variable Speed Drive.

MOTORIZED MODELS ARE SHOWN BELOW

Click Model #
to Request a Quot
e
Max
Width
I.D.
Max
O.D.
HP
Weight
Capacity
Lbs.
DD100M
6"
6 - 24"
44"
1/4
100
DD250M
6"
6 - 24"
44"
1/4
250
DDM-0
8"
6 - 24"
44"
1/4
400
DDM-1
10"
6 - 24"
44"
1/4
600
DDM-2
13"
8 - 24"
48"
1/4
1200
MDD-2012-M
12"
15 - 20"
48"
1
2000
MDD-2016-M
16"
15 - 20"
48"
1
2000
MDD-2024-M
24"
15 - 20"
48"
1
2000
MDD-3012-M
12"
15 - 20"
54"
1.5
3000
MDD-3016-M
16"
15 - 20"
54"
1.5
3000
MDD-3024-M
24"
15 - 20"
54"
1.5
3000
MDD-4016-M
16"
15 - 20"
54"
2
4000
MDD-4024-M
24"
15 - 20"
54"
2
4000
MDD-4032-M
32"
15 - 20"
54"
2
4000
MDD-4036-M
36"
15 - 20"
54"
2
4000
MDD-6024-M
24"
15 - 20"
54"
3
6000
MDD-6032-M
32"
15 - 20"
54"
3
6000
MDD-6036-M
36"
15 - 20"
54"
3
6000

Photo of Durant model DDM-2 Double Uncoiler

UNMOTORIZED MODELS ARE BELOW

Click
Model #
to Request a Quote
Max Width
I.D.
Weight
Capacity
Lbs.
DD100U
6"
6 - 24"
100
DD250U
6"
6 - 24"
250
DDSC-0
8"
6 - 24"
400
DDSC-1
10"
6 - 24"
600
DDSC-2
13"
8 - 24"
1200
MDD2012U
12"
15 - 20"
2000
MDD2016U
16"
15 - 20"
2000
MDD2024U
24"
15 - 20"
2000
MDD3012U
12"
15 - 20"
3000
MDD3016U
16"
15 - 20"
3000
MDD3024U
24"
15 - 20"
3000
MDD4016U
16"
15 - 20"
4000
MDD4024U
24"
15 - 20"
4000
MDD4032U
32"
15 - 20"
4000
MDD4036U
36"
15 - 20"
4000
MDD6024U
24"
15 - 20"
6000
MDD6032U
32"
15 - 20"
6000
MDD6036U
36"
15 - 20"
6000

Cut To Length Machine

Uses Air and 120 Volt AC electrics! Great for the small shop. The Durant feeding and shearing machines include a built-in servo feeder, control with display, speed potentiometer, safety guard, shock absorbers, adustable shearing knife clearances, and horizontal strip guide rollers. 3 year Durant warranty

Click Model Number
to Request a Quote
Max
Width
Metal
Thickness
Range
Cutting
Length
MP6-SCP
6"
.046"
0 to 999"
MP12-SCP
12"
.068"
0 to 999"
MP18-SCP
18"
.068"
0 to 999"
MP24-SCP
24"
.068"
0 to 999"
Durant Cut To Length Machine

Click for the American Machine Tool Homepage

American Machine Tools Corp.
5864 Northwest Hwy
Chicago IL 60631 USA

Phone: 773-334-5000
Fax: 773-442-0314

Click to email us

Terms and Conditions

Privacy Clause

Frequently Asked Questions
Website by eMarketAmerica
Copyright 2015
American Machine Tools Corp.

All rights reserved
Information on this website is subject to change without notice.
Offers from American Machine Tools Corporation include include Terms and Conditions shown on our website.
Liability is strictly limited to those warranties of fitness for purpose and safety as provided by the manufacturer.
Products and Logos in this website are trademarks or registered trademarks of their respective companies or mark holders.
