Gooseneck Punch & Offset Die Press Brake Tooling

American Machine Tools Company is accedited by the Better Business Bureau! Click to verify. We accept credit cards for up to $10,000.

Special Purpose Punches and Dies - scroll down this page
GooseNeck die punches for channel making, Hemming dies, Flattening dies, and Offet Bending die sets.

Click for General Purpose 30 degree Press Brake Punches and Dies
Acute Dies are the most universal type of press brake dies. Recommended as a starter set. Make air-form bends from 30 to shallow bends, and also for first operation set in hemming.

Click for General Purpose 90 degree Press Brake Punches and Dies
Commonly used for forming 90 bends. Forming bends greater than 90 is also practical by air bending.

Click for3 Way Dies and 4 Way Bottom Die and Die Holder Tooling
These bottom dies are for standard straight bending and radius forming. The slotted ones can be used as Die Holders.

Click for Tonnage Requirement Chart

Click for Hydraulic Press Brake machine page

26 gauge 24 ga. 22 ga. 20 ga . 18 ga. 16 ga. 14 ga. 13 ga. 12 ga. 11 ga. 10 ga. 9 ga. 8 ga. 7 ga. 6 ga.
.018" .024" .030" .036" .048" .060" .075" .090" .105" .120" .135" .150" .164" .180" .194
.46mm .61mm .76mm .91mm 1.2mm 1.5mm 1.9mm 2.3mm 2.7mm 3mm 3.4mm 3.8mm 4mm 4.6mm 4.9mm

Goose Neck Shaped Forming Punches
These Gooseneck Punches are ideal for channel forming in 2 strokes, or for making special shapes wherea straight 90 punch would interfere. Dimensions show width of face and length of return flange. Any further cutback beyond the center line will increase the length of return flange, but reduces work capacity of the punch.

Options:
• Hook Tongue:
recommend when using a segmented punch in press brakes that are fitted for hooked tongue tooling.

• Flame Hardening: recommended where extra durability and wear life is needed (such as bending alot of stainless steel).
• Polishing: recommended when forming materials that require minimum marking (a substitute for urethane strips).

Goose Neck Punch
Number 6A - 1/4" - 22 Gauge
4 foot $
435., 6 foot $521.
8 foot $652 10 foot $782, 12 foot $869
Call for other size prices.

Goose Neck Punch
Number 6B - 3/8" - 18 Gauge
4 foot $
459., 6 foot $551.
8 foot $689, 10 foot $826, 12 foot $919

Call for other size prices.
Goose Neck Punch
Number 6C- 1/2" - 14 Gauge
4 foot $
477., 6 foot $573.
8 foot $716, 10 foot $859, 12 foot $955

Call for other size prices.
Goose Neck Punch
Number 9A - 3/4" - 10 Gauge
4 foot $589
., 6 foot $705.
8 foot $881, 10 ft $1057, 12 ft $1175.

Call for other size prices.
Goose Neck Punch
Number 9B - 1" - 9 Gauge
4 foot $600
., 6 foot $719.
8 foot $899, 10 ft $1080, 12 ft $1200.
Call for other size prices.
Goose Neck Punch
Number 9C - 1 1/4 " - 3/16 Capacity
4 foot $
807., 6 foot $969.
8 foot $1211, 10 ft $1454, 12 ft $1615.
Call for other size prices.
Goose Neck Punch
Number 7A - 7/16" - 16 Gauge
2 foot $537., 4 ft $893
., 6 ft $1071.
8 foot $1341, 10 ft $1608, 12 ft $1786.

Call for other size prices.
Goose Neck Punch
Number 7B - 3/4" - 12 Gauge
2 foot $680, 4 ft $1100
., 6 ft $1360.
8 foot $1698, 10 ft $2038, 12 ft $2265
Call for other size prices.
Goose Neck Punch
Number 7C - 1" - 10 Gauge
2 foot $750., 4 ft $
1181., 6 ft $1450.
8 foot $1772, 10 ft $2126, 12 ft $2363
Call for other size prices.

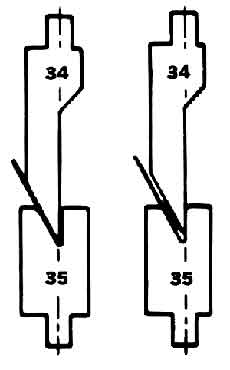

General Purpose Hemming Die Set
Hem is completed in 2 strokes on 18 gauge and lighter mild steel.

Hemming Punch
Number 34 - 18 Gauge

Number 34 & 35 Combo Die Set:
2 foot $940., 4 ft $1129., 6 ft $1304.
8 foot $1601., 10 foot $1867.,
12 foot $2279., 16 foot $2764.

Hemming Die
Number 35 - 18 Gauge

Hem is completed in 2 strokes
Hem is completed in 2 strokes on 18 gauge (.048") and lighter mild steel.

General Purpose Flattening Dies
Flattening Dies are used to complete a hem or to bend to a given degree of closure a previously formed acute angle. 2 dies are used, both of the same part number.

Flattening Die
Number 16A
4 foot $
312, 6 ft $374.
8 foot $469, 10 ft $562,
12 ft $625., 16 ft $830.

Call for other size prices.
Flattening Die
Number 16B
4 foot $
398, 6 ft $510.
8 foot $625, 10 ft $716,
12 ft $830., 16 ft $1030.

Call for other size prices.
Flattening Die
Number 16C
4 foot $
532, 6 ft $639.
8 foot $800, 10 ft $959,
12 ft $1065, 16 ft $1332

Call for other size prices.
Flattening Die Number 18A
4 foot $
514, 6 ft $617.
8 foot $771, 10 ft $925,
12 ft 1065, 16 ft $1330.

Call for other size prices.
Flattening Die
Number 18B
4 foot $
642, 6 ft $771.
8 foot $965, 10 ft $1156
12 ft $1286, 16 ft $1607.

Call for other size prices.

Offset Dies

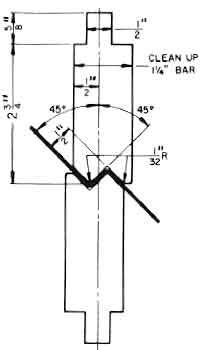

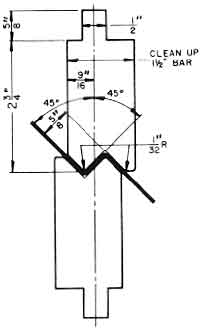

These general purpose Offset Dies form two 90 bends at one stroke. Sizes shown are for mild steel up to 18 gauge (.048"). Dimensions shown clearly illustrate the amount of offset from inside to outside of metal thickness.
Call 773-334-5000 for pricing.

Offset Die
Number 12 - 1/8"
Offset Die
Number 12 - 3/16"
Offset Die
Number 12 - 1/4"
Offset Die
Number 12 - 5/16"
Offset Die
Number 12 - 3/8"
Offset Die
Number 12 - 1/2"
Offset Die
Number 14 - 5/8"
Offset Die
Number 14 - 3/4"
Offset Die
Number 14 - 7/8"
Offset Die
Number 14 - 1"
